Manual knee milling machine MX-4HG
Purpose
The MX-4HG manual knee milling machine uses the worktable to drive the workpiece for movement, and the high-speed spindle drives the cutting tool to rotate for cutting. Manual knee milling machines are widely used in the processing of small-batch parts in mechanical processing, mold making, instrumentation, and other fields.
Manufacturing Process
TAJANE turret milling machines are manufactured according to original Taiwanese drawings. The casting adopts the Meehanite casting process with TH250 material, and is made through natural aging, tempering heat treatment, and precision cold working.
Meehanite casting process
Elimination of internal stress
Tempering heat treatment
Precision machining
Lifting table processing
Lathe processing
Cantilever machining
High frequency quenching
Fine carving
Premium Components
Taiwan original precision components; X, Y, Z three-way lead screws of Taiwan brand; The five major components of the milling head are purchased from original Taiwan sources.
Electrical Safety
The electrical control box has dust-proof, waterproof, and anti leakage functions. Using electrical components from brands such as Siemens and Chint. Set up 24V safety relay protection, machine grounding protection, door opening power-off protection, and multiple power-off protection settings
Using European Standard Cable
Main cable2.5MM², Control cablel 1.5MM²
Electrical components are Siemens And CHNT
Identification clear
Convenient maintenance
Earthing protection
Door s open and power will be cut off.
Press emergency stop Power cut off.
Power off switch
Master switch Power Indicator Lamp
Earthing protection
Emergency stop button

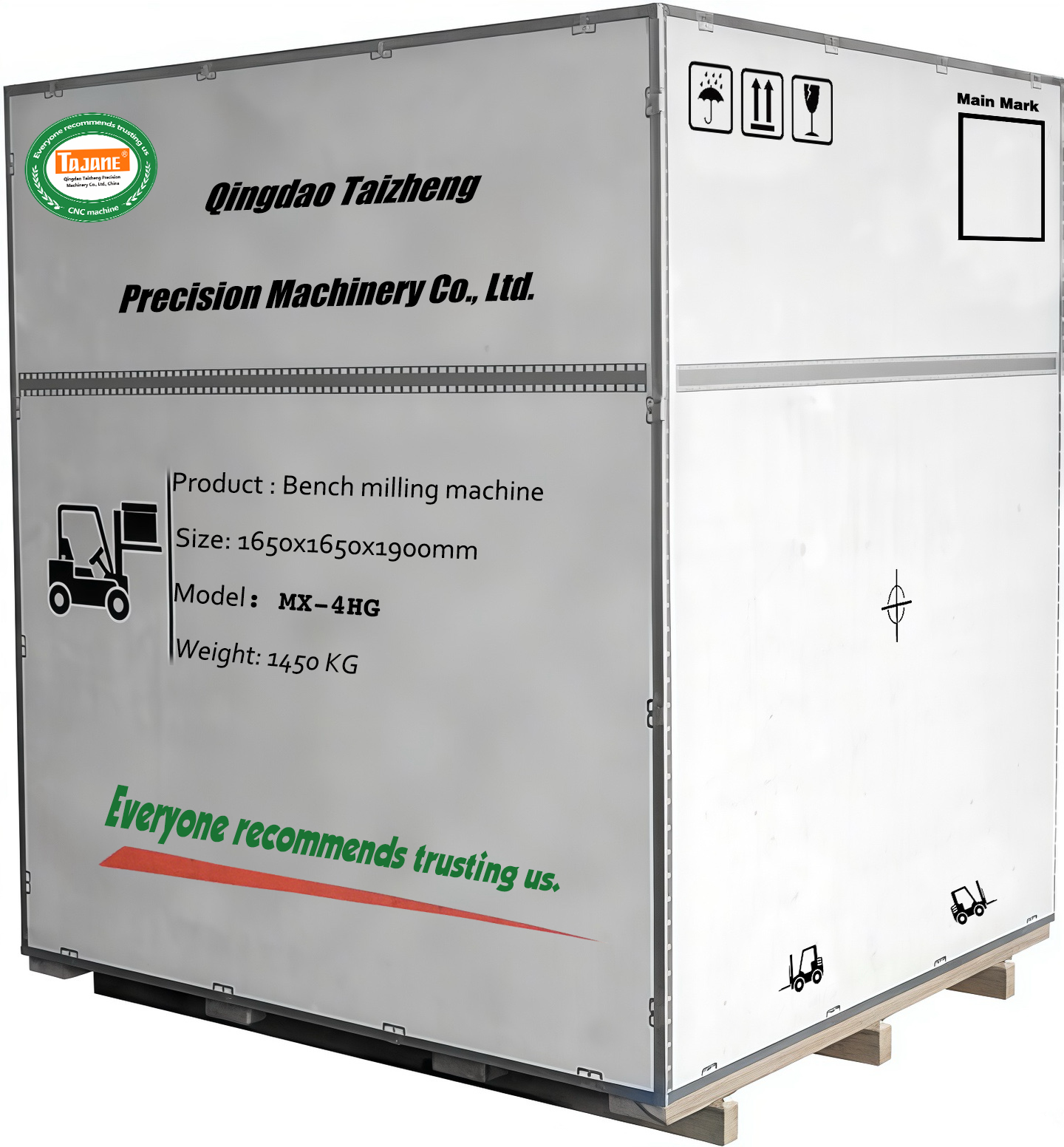

Sturdy Packaging
Safe transportation, the machine tool is vacuum sealed and moisture-proof inside, and fumigation free solid wood and fully enclosed steel strip packaging outside. It can be safely transported to every location in the world.
Steel belt fasteners, wooden packaging,
Locking connection, firm and tensile.
Free delivery to major ports and customs clearance ports nationwide.

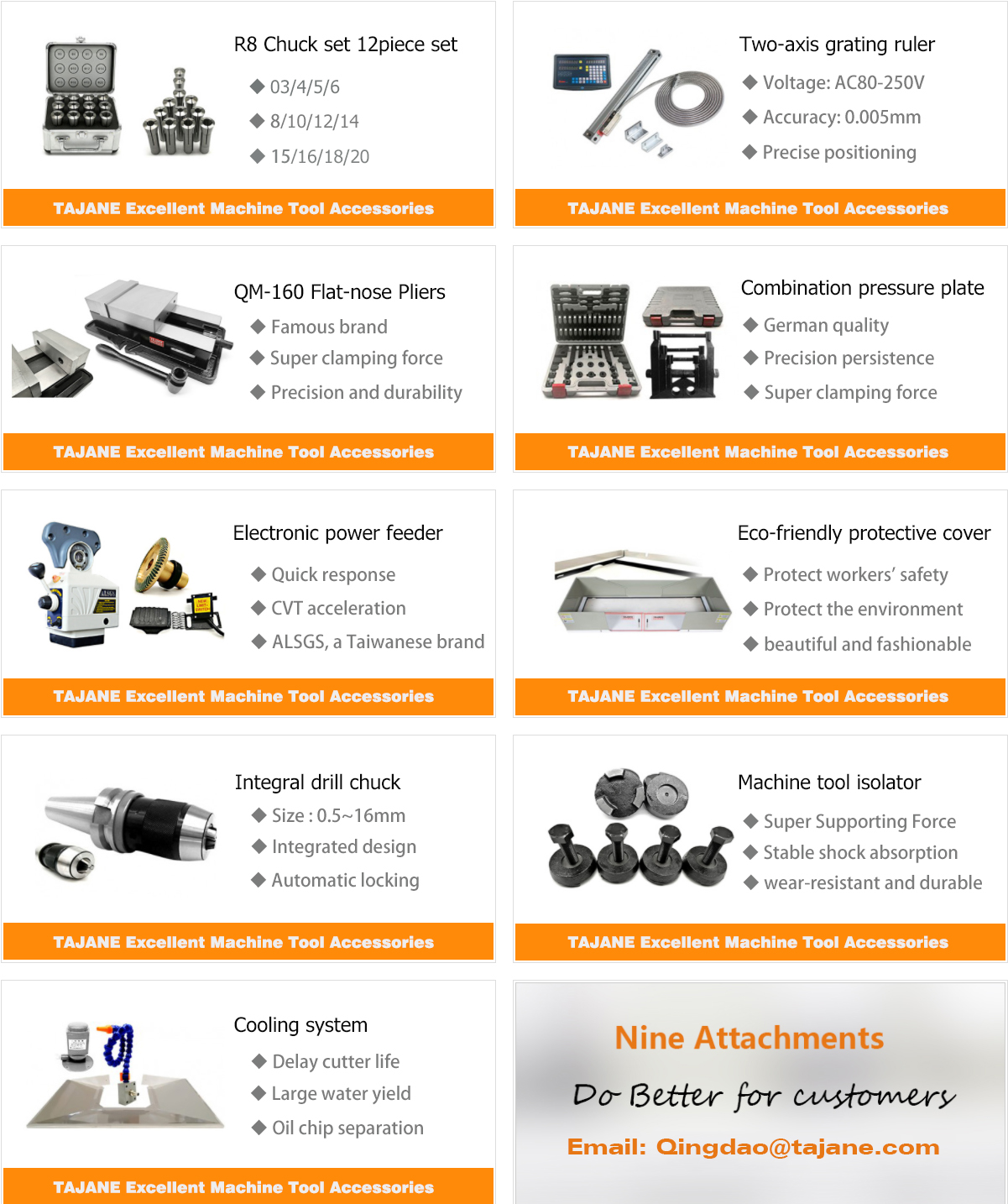

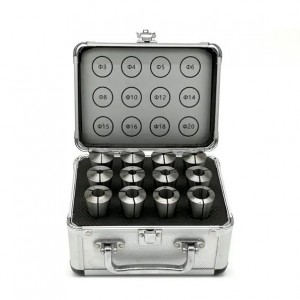

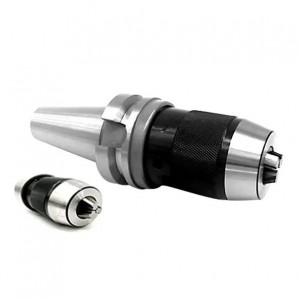

Milling machine accessories meet different processing needs

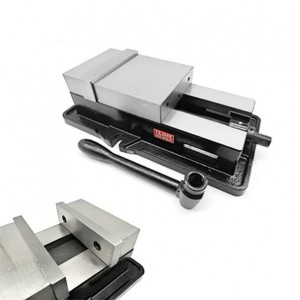

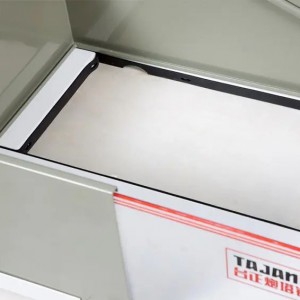

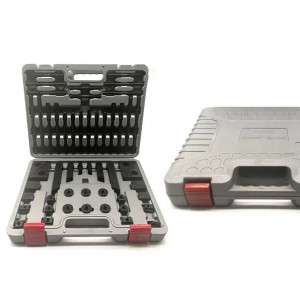

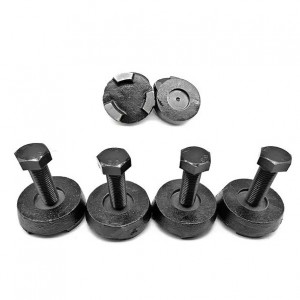

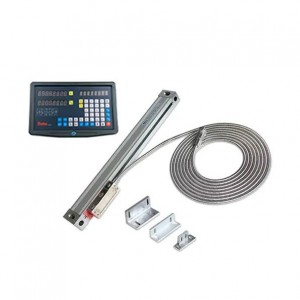

Standard equipment: Nine major accessories are included as gifts to meet customers’ different processing needs.
Present nine kinds of wearing parts to solve your worries
Consumable parts: Nine key consumables are included for peace of mind. You may never need them, but they’ll save time when you do.

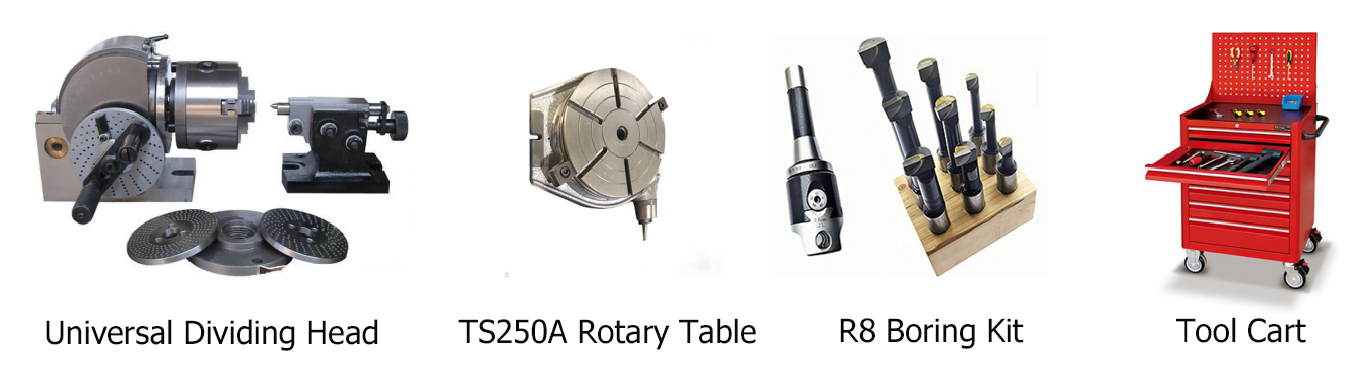

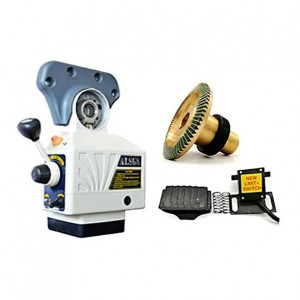

Machine tool additional equipment, suitable for various processing
Additional equipment: Auxiliary tools expand functionality for special/complex processing (optional, extra cost).
| Model | MX-4HG |
|---|---|
| Strength | |
| Network voltage | Three-phase 380V (or 220V, 415V, 440V) |
| Frequency | 50Hz（or 60Hz） |
| Main drive motor power | 3HP/2.2KW |
| Total power / current load | 4kw/6.5A |
| Machining parameters | |
| Worktable size | 1070×254mm |
| X-axis travel | 810mm |
| Y-axis travel | 360mm |
| Z-axis travel | 360mm |
| Workbench | |
| Workbench T-slot | 3×16×65mm |
| Maximum load capacity of workbench | 300kg |
| Distance from spindle end face to workbench | 470mm |
| Distance from spindle center to guideway surface | 190mm |
| Milling head spindle | |
| Type of spindle taper | R8 spindle（or NT30） |
| Spindle sleeve stroke | 120mm |
| Spindle feed speed | 0.04；0.08；0.15 |
| Outer diameter of spindle | 85.725mm |
| Milling head speed | |
| Spindle speed stages | 16 stages |
| Speed range | 70-5440 rpm |
| Number of steps (low range) | 70、110、180、270、600、975、1540、2310rpm |
| Number of steps (high range) | 140、220、360、540、1200、1950、3080、5440rpm |
| Structure | |
| Swivel milling head | ±90° left and right, ±45° front and back, 360° cantilever |
| Guideway type (X, Y, Z) | ▲■▲ |
| Ram extension arm | 520mm |
| Lubrication method | Electronic automatic lubrication |
| Aspect | |
| Length | 1650mm |
| Width | 1650mm |
| Height | 1900mm |
| Weight | 1450kg |
