Manual Knee Mills MX-6HG
Purpose
The MX-6HG manual knee-type milling machine is equipped with a 5HP heavy-duty motor. The X worktable can move up to 1000mm. The bed guideway adopts a high-strength short double-sided structure, which meets the rigidity requirements of processing. The lubrication device uses a fully automatic electronic oil pump to precisely control the oil output. Manual knee-type milling machines are widely used in the processing of complex parts and mold parts.
Manufacturing Process
TAJANE turret milling machines are manufactured according to original Taiwanese drawings. The casting adopts the MiHanNa casting process and TH250 material, and is manufactured through natural aging, tempering heat treatment and precision cold processing.
Meehanite casting process
Elimination of internal stress
Tempering heat treatment
Precision machining
Lifting table processing
Lathe processing
Cantilever machining
High frequency quenching
Fine carving
Premium Components
Taiwan original precision components; X, Y, Z three-way lead screws of Taiwan brand; The five major components of the milling head are purchased from original Taiwan sources.
Electrical Safety
The electrical control box has dust-proof, waterproof, and anti leakage functions. Using electrical components from brands such as Siemens and Chint. Set up 24V safety relay protection, machine grounding protection, door opening power-off protection, and multiple power-off protection settings
Using European Standard Cable
Main cable2.5MM², Control cablel 1.5MM²
Electrical components are Siemens And CHNT
Identification clear
Convenient maintenance
Earthing protection
Door s open and power will be cut off.
Press emergency stop Power cut off.
Power off switch
Master switch Power Indicator Lamp
Earthing protection
Emergency stop button
Sturdy Packaging

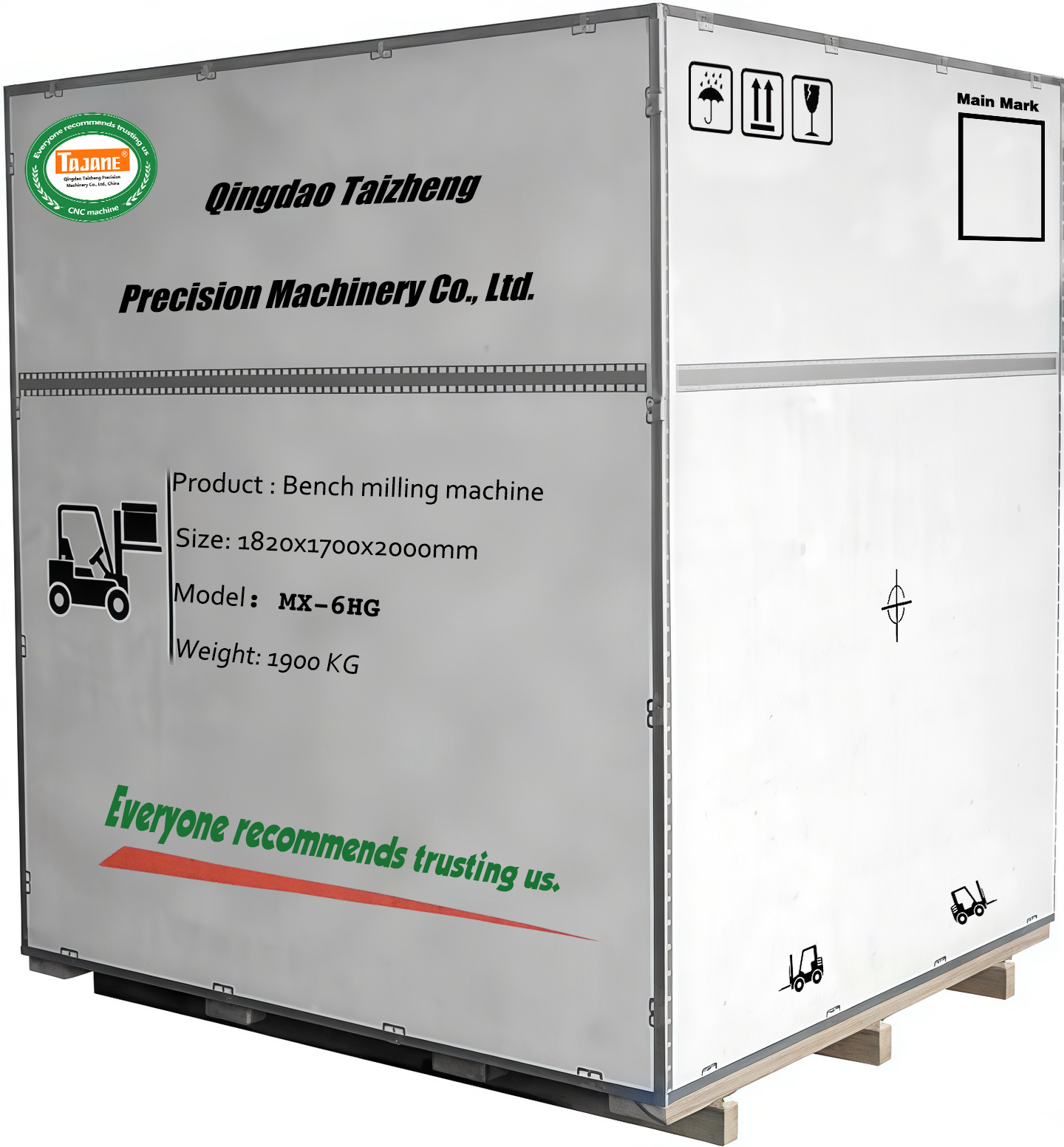

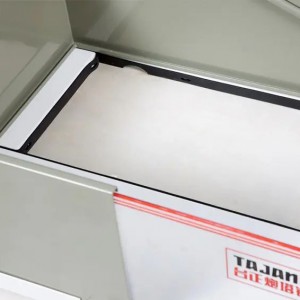

The machine tool’s interior is vacuum-sealed for moisture protection, and its exterior packaged with fumigation-free solid wood and fully enclosed steel strips to ensure transport safety. Free delivery is offered at major domestic ports and customs clearance ports, with safe transport to all global regions.
Milling machine accessories meet different processing needs

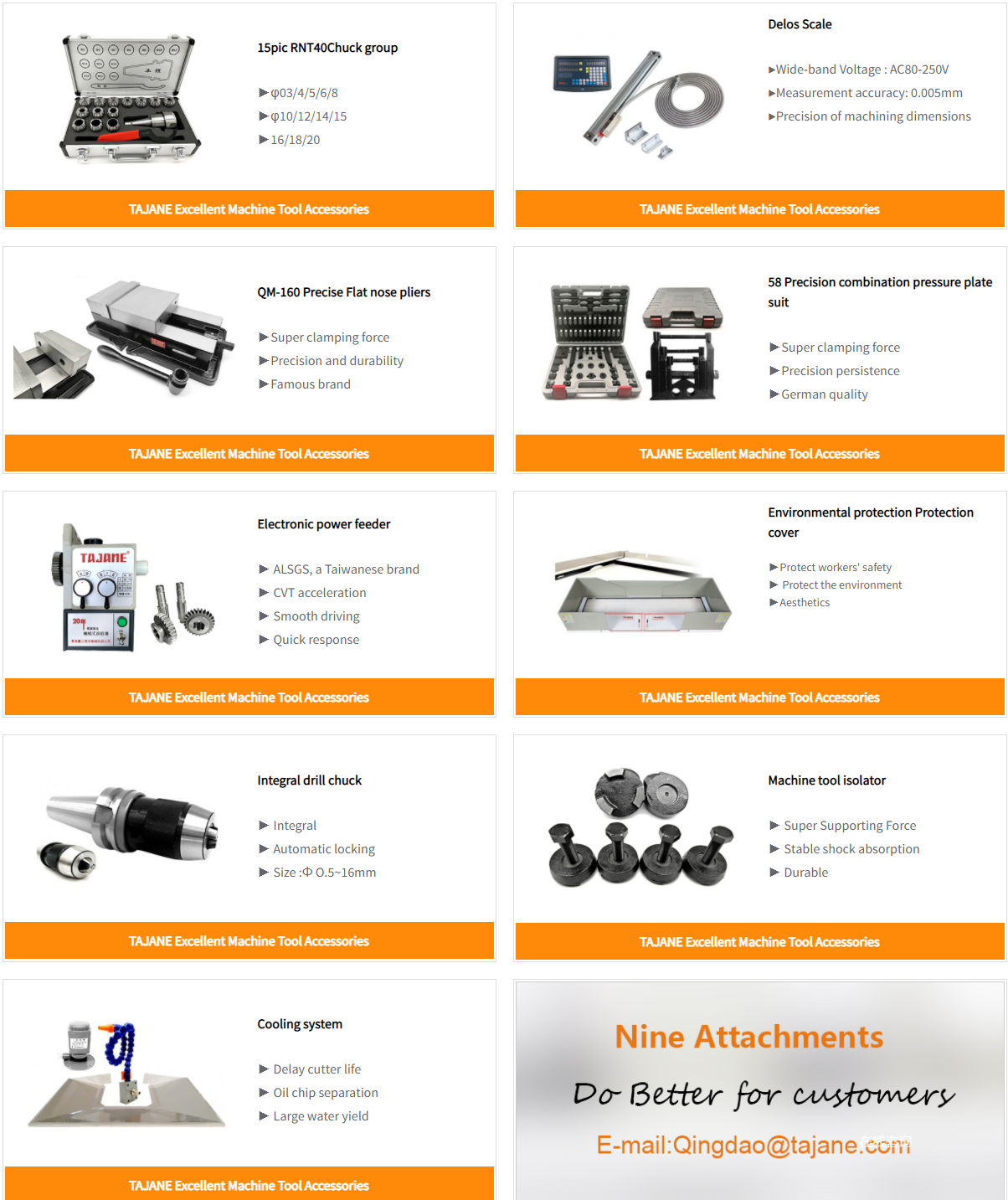

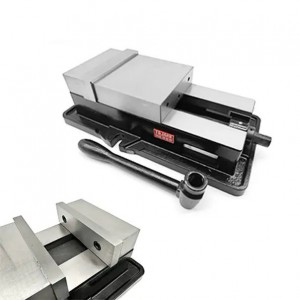

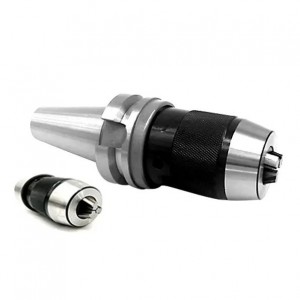

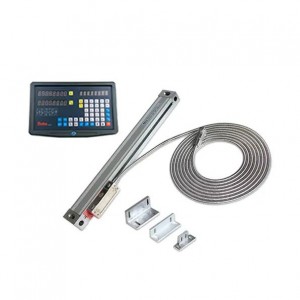

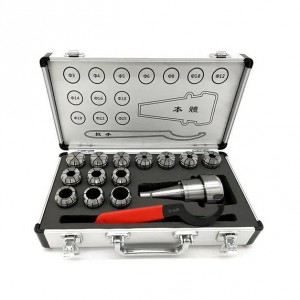

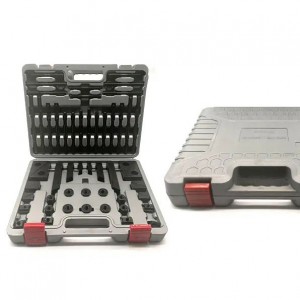

Standard equipment: Nine major accessories are included as gifts to meet customers’ different processing needs.
Present nine kinds of wearing parts to solve your worries

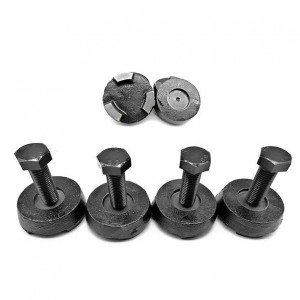

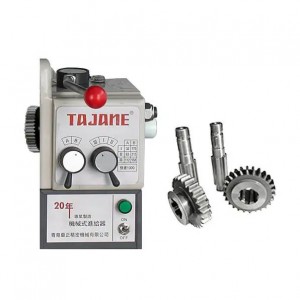

Consumable parts: Nine key consumables are included for peace of mind. You may never need them, but they’ll save time when you do.
Machine tool additional equipment, suitable for various processing

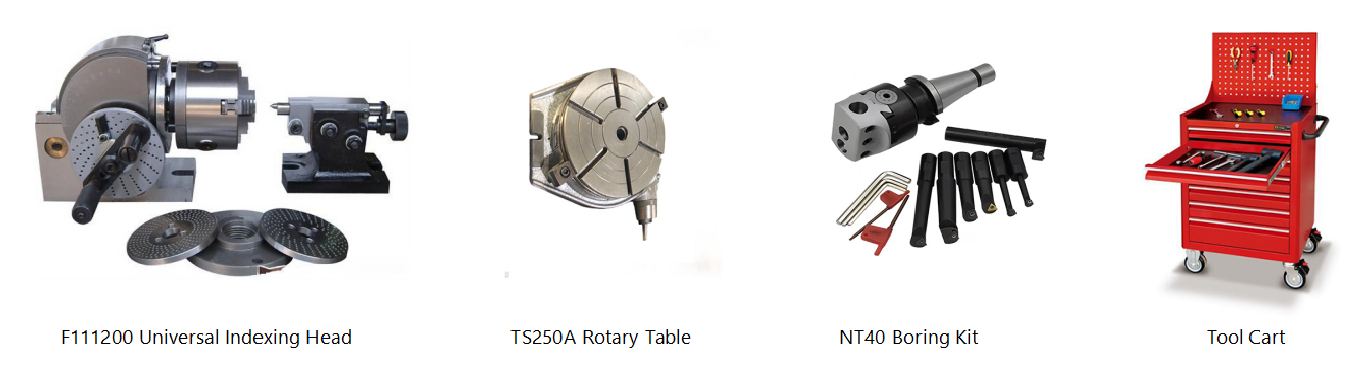

Additional equipment: Auxiliary tools expand functionality for special/complex processing (optional, extra cost).
| Model | MX-6LW |
|---|---|
| Strength | |
| Network voltage | Three-phase 380V (or 220V, 415V, 440V) |
| Frequency | 50Hz（or 60Hz） |
| Main drive motor power | 5HP |
| Total power / current load | 9.5kw/11A |
| Machining parameters | |
| Worktable size | 1372×330mm |
| X-axis travel | 1030mm |
| Y-axis travel | 400mm |
| Z-axis travel | 380mm |
| Workbench | |
| Workbench T-slot | 3×16×65mm |
| Maximum load capacity of workbench | 500kg |
| Distance from spindle end face to workbench | 660mm |
| Distance from spindle center to guideway surface | 200mm |
| Milling head spindle | |
| Type of spindle taper | NT40 |
| Spindle sleeve stroke | 120mm |
| Spindle feed speed | 0.04；0.08；0.15 |
| Outer diameter of spindle | 85.725mm |
| Milling head speed | |
| Spindle speed stages | 16 stages |
| Speed range | 70-5440 rpm |
| Number of steps (low range) | 70、110、180、270、600、975、1540、2310rpm |
| Number of steps (high range) | 140、220、360、540、1200、1950、3080、5440rpm |
| Structure | |
| Swivel milling head | ±90° left and right, ±45° front and back, 360° cantilever |
| Guideway type (X, Y, Z) | ▲ ■ ■ |
| Ram extension arm | 520mm |
| Lubrication method | Electronic automatic lubrication |
| Aspect | |
| Length | 1980mm |
| Width | 1750mm |
| Height | 2050mm |
| Weight | 2300kg |
