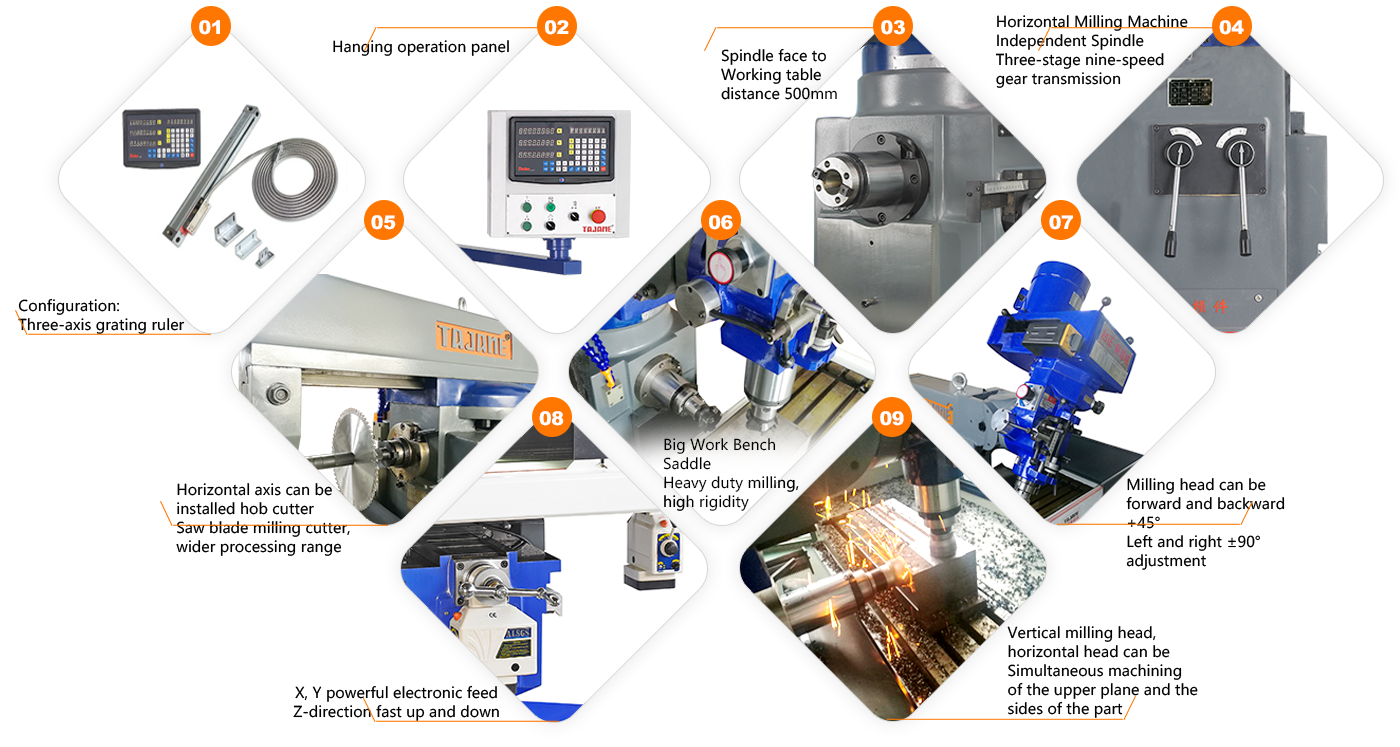

Vertical Turret Milling Machine MX-4LW
Purpose
Manufacturing Process
TAJANE turret milling machines are manufactured according to original Taiwanese drawings. The casting adopts the MiHanNa casting process and TH250 material, and is manufactured through natural aging, tempering heat treatment and precision cold processing.
Mihanna Casting Technology
Elimination of internal stress
Tempering heat treatment
Precision machining
Lifting table processing
Lathe processing
Cantilever machining
High frequency quenching
Fine carving
Premium Components

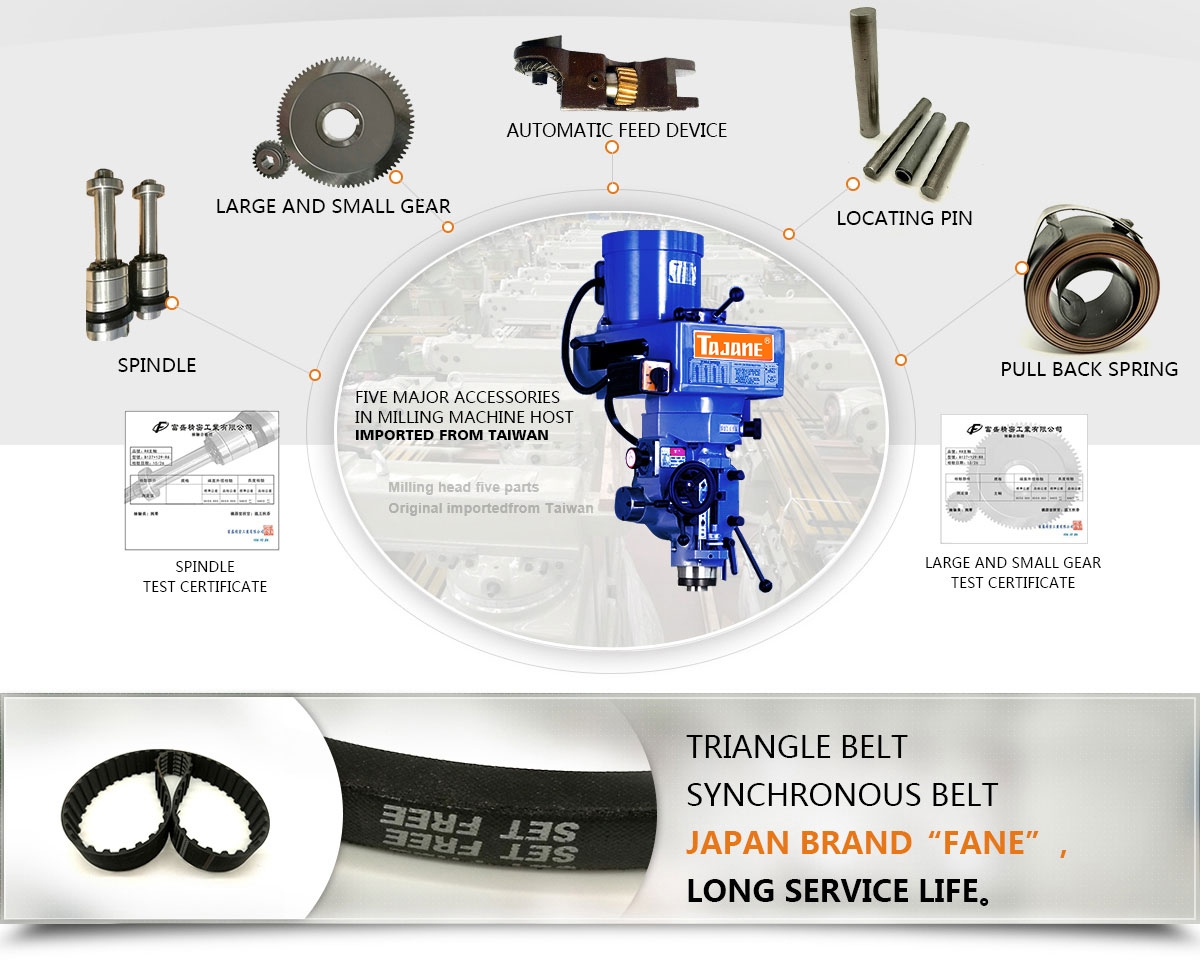

Taiwan original precision components; X, Y, Z three-way lead screws of Taiwan brand; The five major components of the milling head are purchased from original Taiwan sources.
Electrical Safety
The electrical control box has dust-proof, waterproof, and anti leakage functions. Using electrical components from brands such as Siemens and Chint. Set up 24V safety relay protection, machine grounding protection, door opening power-off protection, and multiple power-off protection settings
Using European Standard Cable
Main cable2.5MM², Control cablel 1.5MM²
Electrical components are Siemens And CHNT
Identification clear
Convenient maintenance
Earthing protection
Door s open and power will be cut off.
Press emergency stop Power cut off.
Power off switch
Master switch Power Indicator Lamp
Earthing protection
Emergency stop button
Sturdy Packaging
The machine tool’s interior is vacuum-sealed for moisture protection, and its exterior packaged with fumigation-free solid wood and fully enclosed steel strips to ensure transport safety. Free delivery is offered at major domestic ports and customs clearance ports, with safe transport to all global regions.

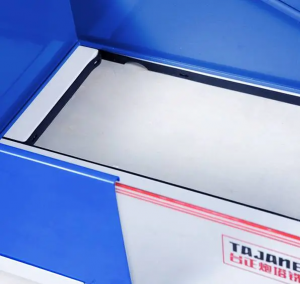

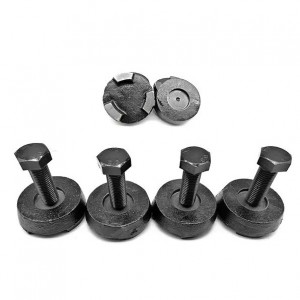

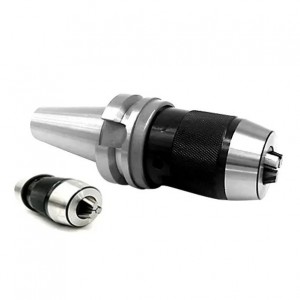

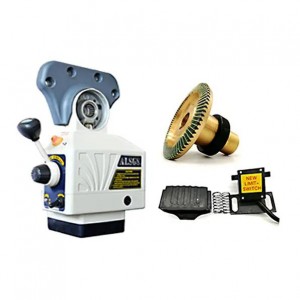

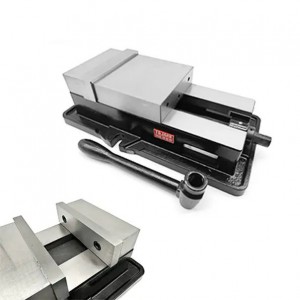

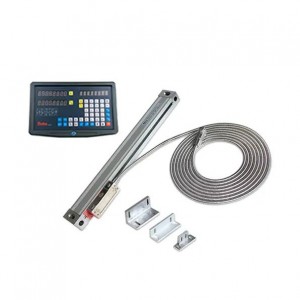

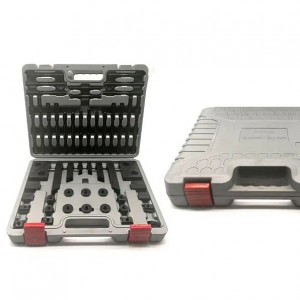

Milling machine accessories meet different processing needs

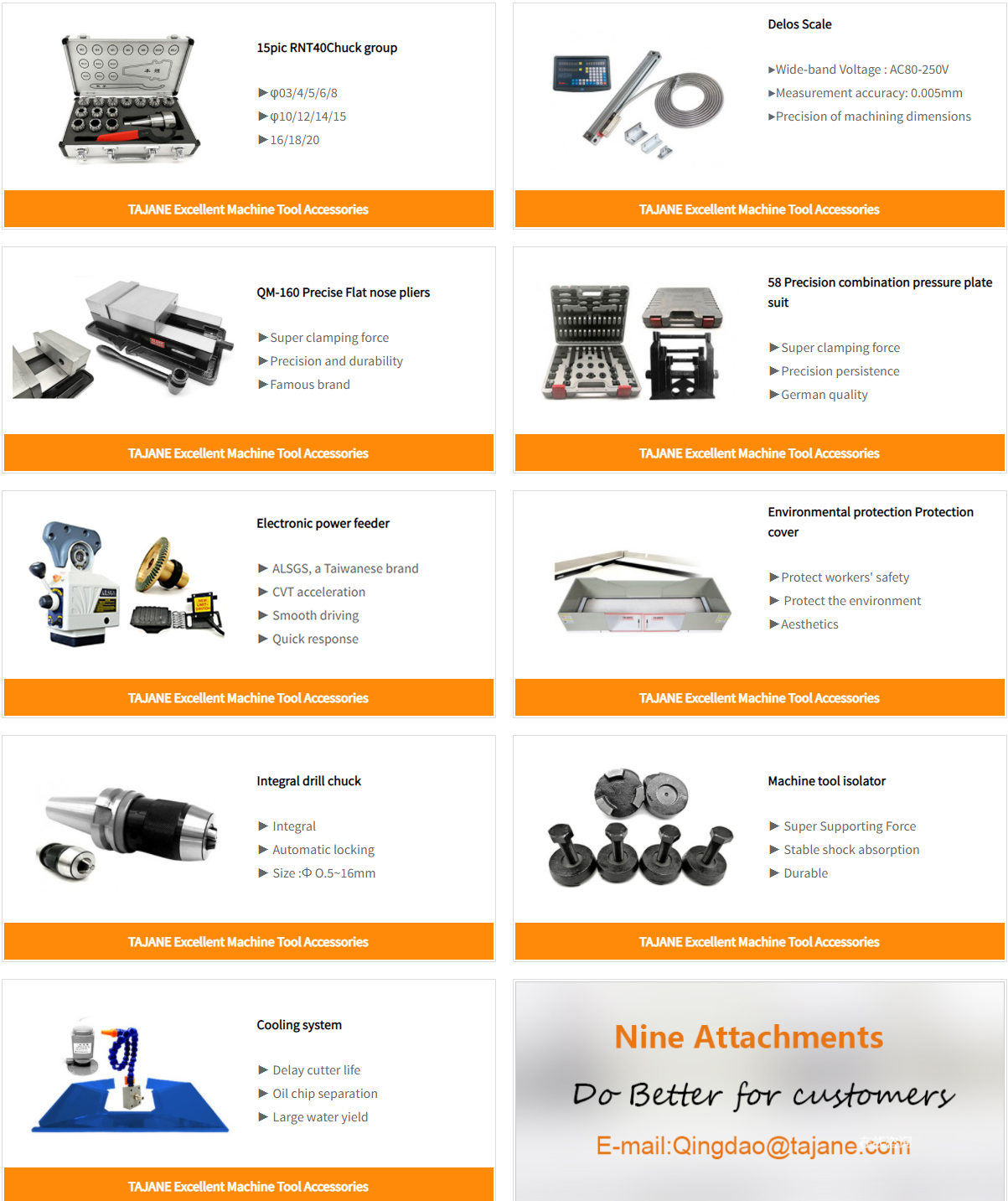

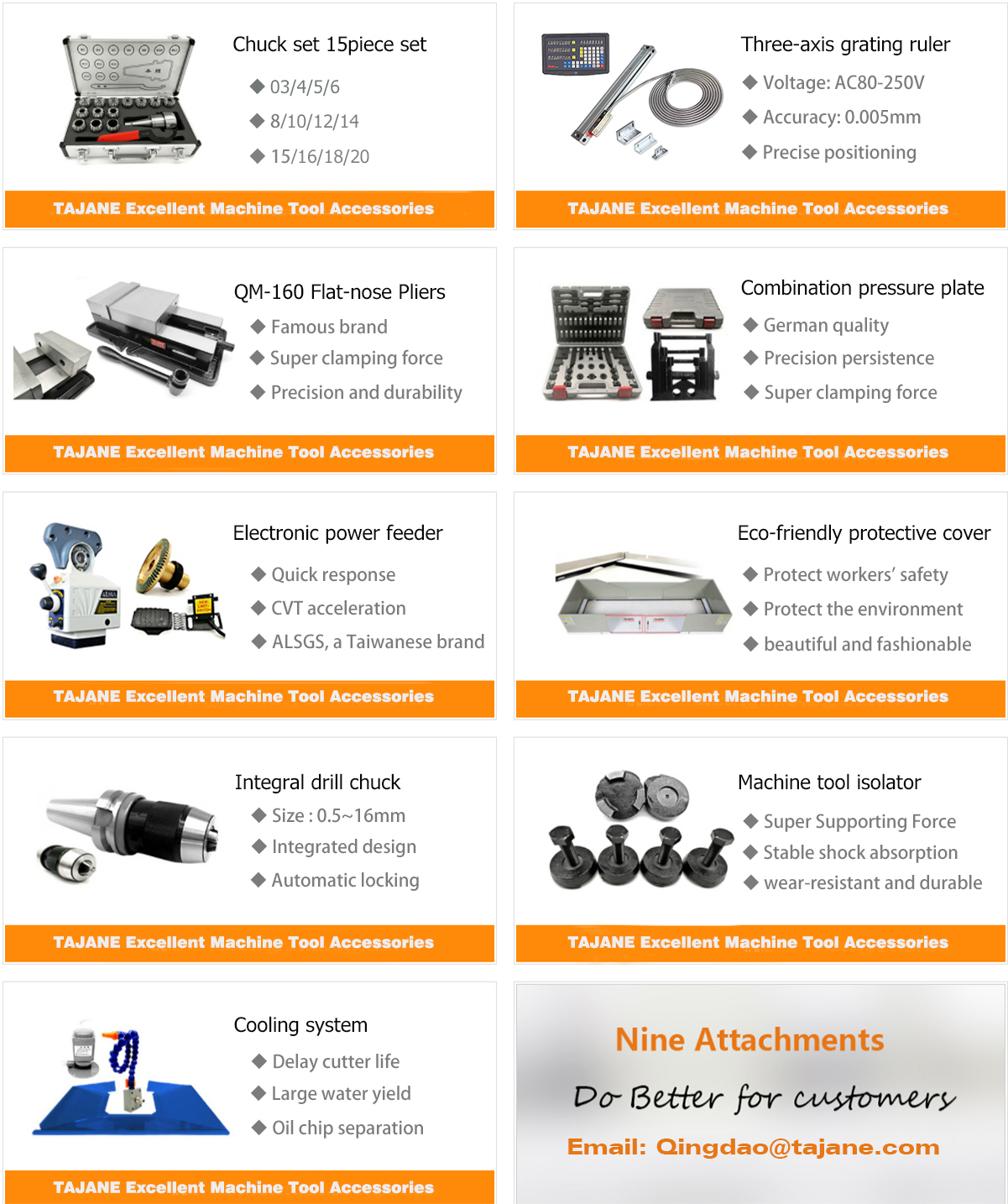

Standard equipment: Nine major accessories are included as gifts to meet customers’ different processing needs.
Present nine kinds of wearing parts to solve your worries

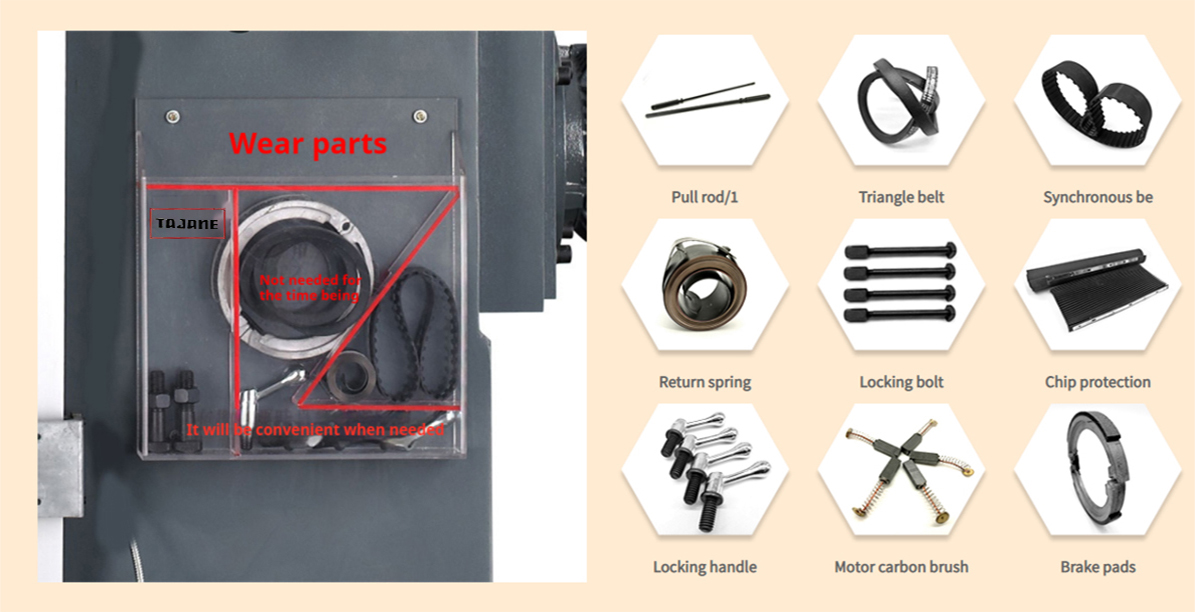

Consumable parts: Nine key consumables are included for peace of mind. You may never need them, but they’ll save time when you do.
Machine tool additional equipment, suitable for various processing

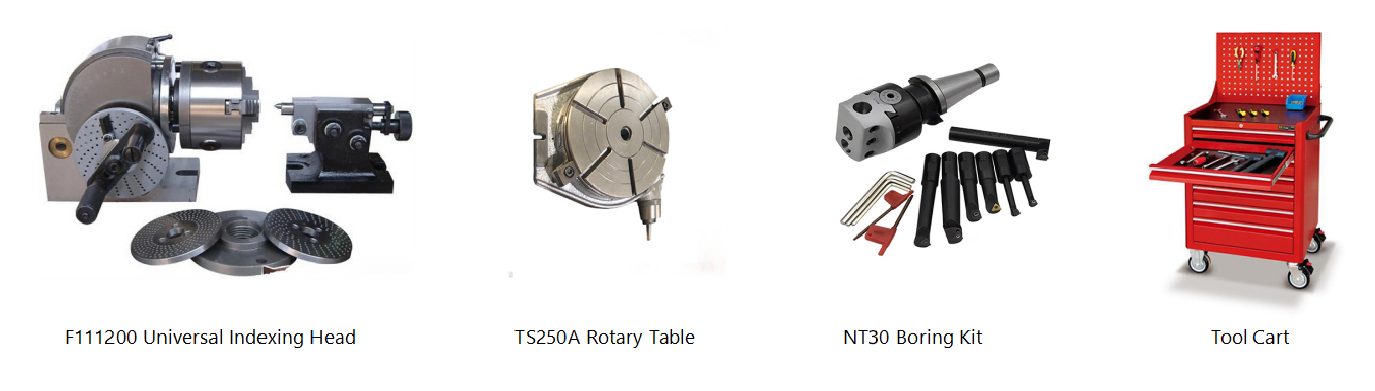

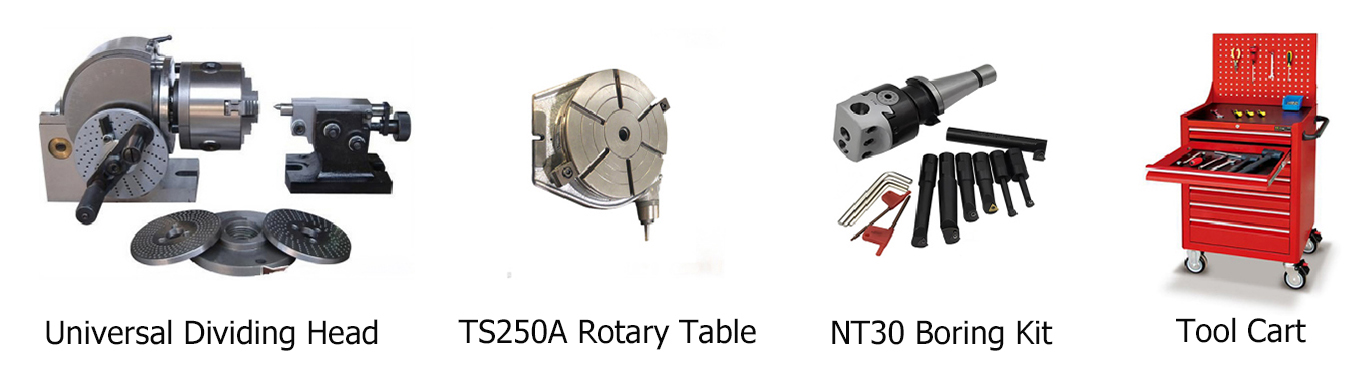

Additional equipment: Auxiliary tools expand functionality for special/complex processing (optional, extra cost).
| Model | MX-4LW |
|---|---|
| Strength | |
| Network voltage | Three-phase 380V (or 220V, 415V, 440V) |
| Frequency | 50Hz（or 60Hz） |
| Main drive motor power | 3HP |
| Total power / current load | 7.5kw/9.5A |
| Machining parameters | |
| Worktable size | 1270×254mm |
| X-axis travel | 810mm |
| Y-axis travel | 360mm |
| Z-axis travel | 360mm |
| Workbench | |
| Workbench T-slot | 3×16×65mm |
| Maximum load capacity of workbench | 300kg |
| Distance from spindle end face to workbench | 370mm |
| Distance from spindle center to guideway surface | 190mm |
| Milling head spindle | |
| Type of spindle taper | NT30 |
| Spindle sleeve stroke | 120mm |
| Spindle feed speed | 0.04；0.08；0.15 |
| Outer diameter of spindle | 85.725mm |
| Milling head speed | |
| Spindle speed stages | 16 stages |
| Speed range | 70-5440 rpm |
| Number of steps (low range) | 70、110、180、270、600、975、1540、2310rpm |
| Number of steps (high range) | 140、220、360、540、1200、1950、3080、5440rpm |
| Structure | |
| Swivel milling head | ±90° left and right, ±45° front and back, 360° cantilever |
| Guideway type (X, Y, Z) |
▲ ■ ■
|
| Ram extension arm | 520mm |
| Lubrication method | Electronic automatic lubrication |
| Aspect | |
| Length | 1920mm |
| Width | 1770mm |
| Height | 2000mm |
| Weight | 1800kg |
