Gantry type milling machine GMC-2016
Gantry-type machining centers that provide high-precision performance in die cutting, high-precision contour finishing, milling, drilling and tapping
Product use
TAJANE gantry machining center, featuring strong horsepower and high rigidity, provides you with a complete solution for oversized workpiece machining.
Gantry-type machining centers have been widely used in the machining of aerospace, shipbuilding, energy and machine tool manufacturing parts.

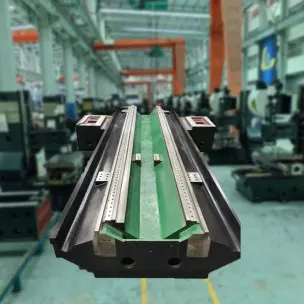

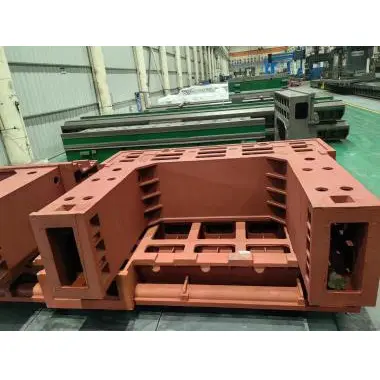

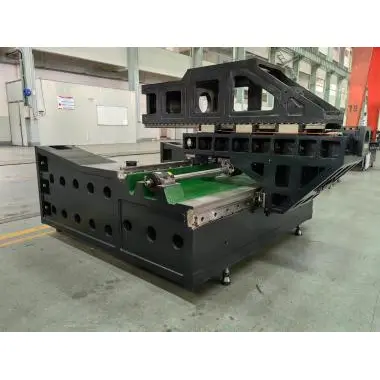

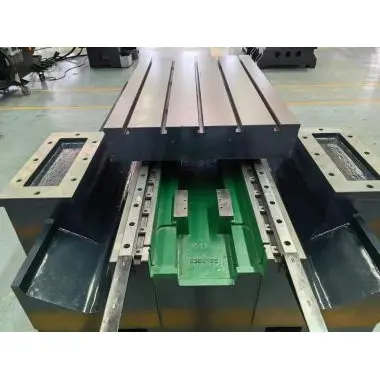

Boutique Parts
Configure brand CNC system
TAJANE gantry machining center machine tools, according to customer needs, provide various brands of CNC systems to meet customers' different needs for vertical machining centers, FANUC, SIEMENS, MITSUBISH, SYNTEC。
| model | Unit | GMC-2016 |
| stroke | ||
| X-axis stroke | mm | 2000 |
| Y-axis travel | mm | 1650 |
| Z-axis travel | mm | 800 |
| Spindle nose to table | mm | 250- 1050 |
| Spacing between two columns | mm | 1650 |
| Workbench | ||
| Workbench size (length × Wide) | mm | 2100×1400 |
| T-groove (size × quantity × Spacing) | mm | 22×7×200 |
| Maximum load of workbench | kg | 4000 |
| principal axis | ||
| Spindle taper | BT 50/φ190 | |
| Standard spindle type | rpm | Belt type 40-6000 |
| Spindle power (continuous/overload) | Kw | 15/ 18.5 |
| feed | ||
| cutting speed | mm/min | 1-6000 |
| Fast speed | m/min | X/Y/Z：8/10/10 |
| accuracy | ||
| positioning accuracy | mm | ±0.005/300 |
| Repetitive positioning accuracy | mm | ±0.003 |
| other | ||
| Required air pressure | kgf/cm2 | 6.5 |
| Power capacity | KVA | 40 |
| Gross weight of machine tool | kg | 18200 |
| Net weight of machine tool | kg | 18000 |
| Machine tool footprint (length × Wide) | mm | 7500×4000 |
| Machine height | mm | 3800 |
| Tool magazine (optional) | ||
| Tool magazine type | Discs | |
| Tool magazine specifications | BT50 | |
| Tool change time (knife to knife) | Sec. | 3.5 |
| Magazine capacity | Put | 24 |
| Maximum tool size (adjacent tool diameter/length) | mm | Φ125/400 |
| Maximum tool weight | Kg | 15/20 |
Standard Configuration
●Taiwan spindle 6000rpm (highest speed 3200rpm), BT50-190;
●Taiwan X, Ytwo heavy load linear roller guide rail,
●Z box guide way;
●Taiwan ballscrews for X,Y,Z;
●Taiwan arm type tool magazine with 24 tools;
●NSK bearings;
●Auto lubrication system;
●Taiwan water coolant pump;
●Schneider electric components;
●Nitrogen balance system;
●Air conditioner for electrical box;
●Water gun and air gun;
●Screw type chip conveyor;
Optional Accessories
●32pcs chain type tool magazine;
●Germany ZF gear box and oil cooling;
●2MPa Coolant through spindle;
●Renishaw tool setting probe TS27R;
●Double chain type removal system;
●Planetary reducer for three axes;
●Taiwan spindle 8000rpm
●90° Right Angle Milling Head Automatic replacement;
●90° Right Angle Milling Head Manual replacement;
