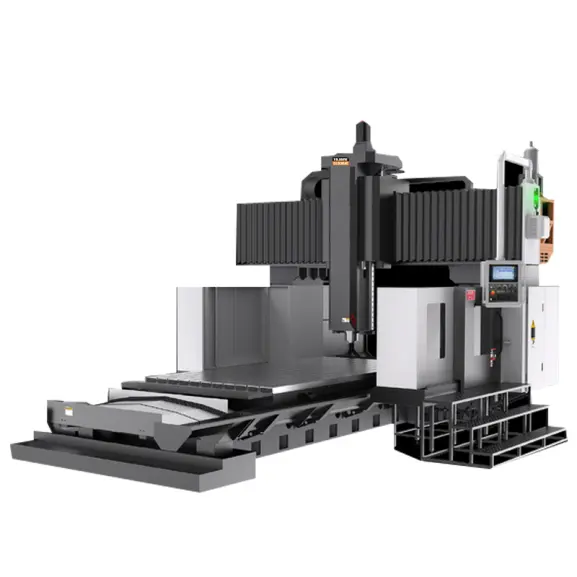

Gantry type milling machine GMC-2518
Gantry-type machining centers that provide high-precision performance in die cutting, high-precision contour finishing, milling, drilling and tapping
Product use
TAJANE gantry machining center, featuring strong horsepower and high rigidity, provides you with a complete solution for oversized workpiece machining.
Gantry-type machining centers have been widely used in the machining of aerospace, shipbuilding, energy and machine tool manufacturing parts.
Boutique Parts
Configure brand CNC system
TAJANE gantry machining center machine tools, according to customer needs, provide various brands of CNC systems to meet customers' different needs for vertical machining centers, FANUC, SIEMENS, MITSUBISH, SYNTEC。
| TRAVEL | G2518L |
| Distance between columns | 1800mm |
| X-axis travel | 2600mm |
| Y-axis travel | 1800mm |
| Z-axis travel | 850mm |
| Spindle nose totable surface | 200-1050mm |
| SPINDLE | |
| Drive type | Belt drive 1:1.33 |
| Spindle taper | BT50 |
| Max. Speed | 6000rpm |
| Spindle Power | 15/18.5 KW |
| Spindle Torque | 190/313Nm |
| Spindle box section | 350*400mm |
| WORKTABLE | |
| Worktable width | 1600mm |
| T-Slot size | 22mm |
| Max load | 7000kgs |
| FEED | |
| Max.cutting speed | 10m/min |
| Rapid traverse | 16/16/16m/min |
| ACCURACY | |
| Positioning(half-closed loop) | 0.019/0.018/0.017mm |
| Repeatability(half closed loop) | 0.014/0.012/0.008mm |
| OTHERs | |
| Air Pressure | 0.65Mpa |
| Power Capacity | 30kVA |
| Machine Weight | 20500kgs |
| Machine Floor | 7885*5000*4800mm |
Standard Configuration
●3 colors warning light;
●Working area light;
● Portable MPG;
● Ethernet DNC machining;
● Automatically power off;
● Transformer;
● Door interlock;
● Spindle air sealing;
● Direct driven spindle BBT50-10000rpm;
● Spindle chiller;
● Lubrication system;
● Machining air blowing device;
● Pneumatic system;
● Rigid tapping;
● Water gun/air gun with flushing function;
● Semi-enclosed splash guard;
● Coolant system;
● Adjustable level bolts and foundation blocks;
● Heat exchanger in electrical cabinet;
● Chain chip conveyor;
● Tool box;
● Operation manual;
Optional Accessories
● HEIDENHAIN TNC;
● Linear scale (Heidenhain);
● Voltage stabilizer;
● Tool measuring system;
● Workpiece measuring system;
● 3D coordinate system rotation;
● 3 axis thermal compensation;
● Oil-feed tool shank port;
● Column rise 200mm/300mm;
● Attachment milling head;
● Rotation storage for attached head;
● 4th axis/5th axis;
● Arm type ATC (32/40/60pcs);
● Oil and water separate box;
● A/C for electric cabinet;
