Horizontal Machining Center HMC-80W
Horizontal milling machine It can realize drilling, milling, boring, expanding, reaming, tapping and other complex parts under one clamping for complex parts such as various discs, plates, shells, cams, and molds. Two lines and one hard structure , suitable for single-piece and mass production of various complex parts in various industries.
Product use
Horizontal machining center, widely used in automotive, aerospace, general machinery and other industries
Horizontal machining center. Most suitable for processing large strokes and complex precision parts
Horizontal machining center, suitable for multi-working surface and multi-process processing of parts
Horizontal machining centers are widely used in complex parts. Surface and hole processing.
Horizontal machining centers are widely used in complex parts. Surface and hole processing.
Product casting process
CNC Horizontal machining center, the casting adopts Meehanite casting process, and the label is TH300.

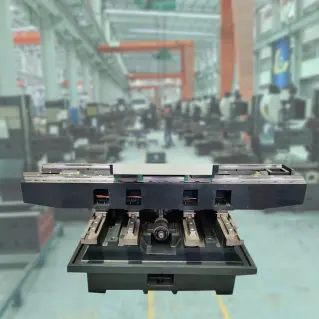

Horizontal milling machine, table cross slide and base, to meet heavy cutting and rapid movement
Horizontal milling machine, the inner part of the casting adopts double-walled grid-shaped rib structure.

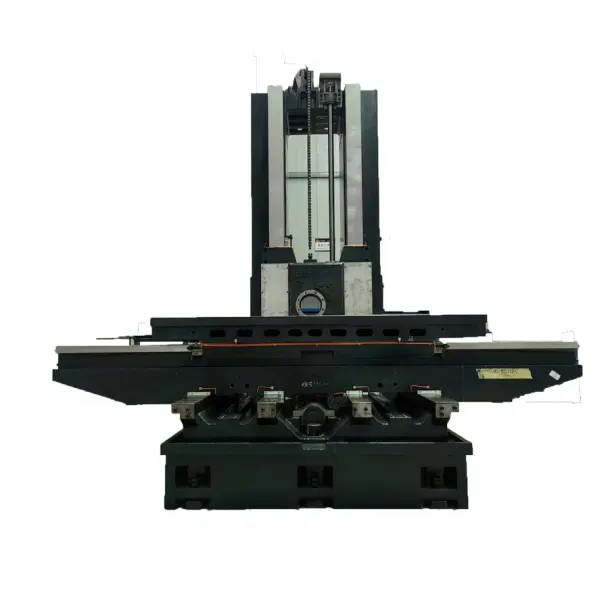

Horizontal milling machine, the bed and columns fail naturally, improving the precision of the machining center.

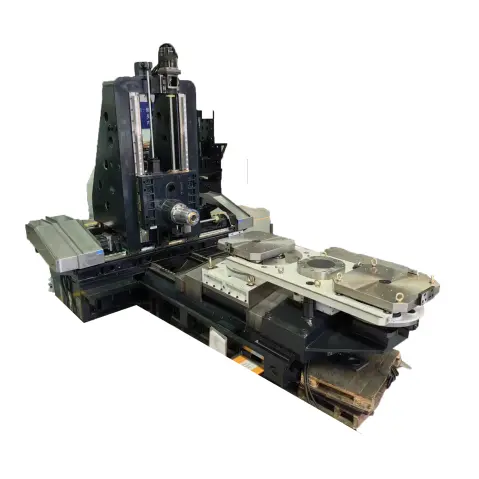

Horizontal machining center, optimized design for five major castings, reasonable layout
Boutique Parts
Precision assembly inspection control process
Workbench Accuracy Test
Opto-Mechanical Component Inspection
Verticality Detection
Parallelism Detection
Nut Seat Accuracy Inspection
Angle Deviation Detection
Configure brand CNC system
TAJANE Horizontal machining center machine tools, according to customer needs, provide various brands of CNC systems to meet customers' different needs for vertical machining centers, FANUC, SIEMENS, MITSUBISH, SYNTEC。
Fully enclosed packaging, escort for transportation
Fully enclosed wooden packaging
Horizontal Machining Center HMC-80W, fully enclosed package, escort for transportation
Vacuum packaging in the box
Horizontal Machining Center HMC-80W, with moisture-proof vacuum packaging inside the box, suitable for long-distance long-distance transportation
Clear mark
Horizontal Machining Center HMC-80W, with clear markings in the packing box, loading and unloading icons, model weight and size, and high recognition
Solid wood bottom bracket
Horizontal Machining Center HMC-80W, the bottom of the packing box is made of solid wood, which is hard and non-slip, and fastens to lock the goods
| Specifications | HMC-80W | |||
| Travel | X-Axis,Y-Axis,Z-Axis | X: 1300, Y: 1000, Z: 1050mm | ||
| Spindle Nose To Pallet | 150-1200mm | |||
| Spindle Center To Pallet Surface | 90-1090mm / 0-1000mm | |||
| Table | Table Size | 800X800mm | ||

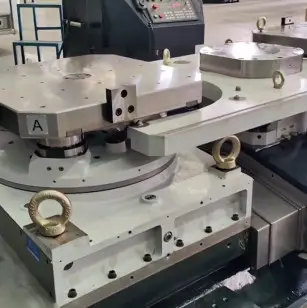

| Workbench Number | 1(OP:2) | |||
| Workbench Surface Configuration | M16-160mm | |||
| The Workbench Maximum Load | 2000kg / 1300kg | |||
| The Smallest Unit of Setting | 1° (OP:0.001°) | |||
| Spindle | Spindle Taper | BT-50 | ||
| Type Of Driving | Belt Type | Direct Type | Gear head | |
| Spindle RPM | 6000 rpm | 8000 rpm | 6000 rpm | |
| Controller and Motor | 0IMF-ß | 0IMF-α | 0IMF-ß | |
| Spindle Motor | 15/18.5 kW (143.3Nm) | 22/26 kW (140Nm) | 15/18.5 kW (143.3Nm) | |
| X Axis Servo Motor | 3kW(36Nm) | 7kW(30Nm) | 3kW(36Nm) | |
| Y Axis Servo Motor | 3kW(36Nm)BS | 7kW(30Nm)BS | 3kW(36Nm)BS | |
| Z Axis Servo Motor | 3kW(36Nm) | 7kW(30Nm) | 3kW(36Nm) | |
| B Axis Servo Motor | 2.5kW (20Nm) | 3kW (12Nm) | 2.5kW (20Nm) | |
| Feed Rate | 0IMF-ß | 0IMF-α | 0IMF-ß | |
| X. Z Axis Rapid Feed Rate | 24m/min | 24m/min | 24m/min | |
| Y Axis Rapid Feed Rate | 24m/min | 24m/min | 24m/min | |
| X. Y. Z Max.Cutting Feed Rate | 6m/min | 6m/min | 6m/min | |
| ATC | Arm Type (Tool to Tool) | 30T (4.5 sec) | ||
| Tool Shank | BT-50 | |||
| Max. Tool Diameter*Length(adjacent) | φ200*350mm(φ105*350mm) | |||
| Max. Tool Weight | 15kg | |||
| Machine Accuracy | Positioning Accuracy (JIS) | ± 0.005mm / 300mm | ||
| Repeat Poitioning Accuracy (JIS) | ± 0.003mm | |||
| Others | Approximate Weight | A: 16500kg / B: 17000kg | ||
| Floor Space Measurement | A: 6000*5000*3800mm B: 7000*5000*3800mm | |||
Standard Accessories
● Spindle and servo motor load display
●Spindle and servo overload protection
●Rigid tapping
● Fully enclosed protective cover
● Electronic handwheel
● lighting fixtures
●Double spiral chip conveyor
●Automatic lubrication system
●Electrical box thermostat
●Spindle tool cooling system
●RS232 interface
●Airsoft guns
●Spindle taper cleaner
●Toolbox
Optional Accessories
●Three-axis grating ruler detection device
●Workpiece measuring system
●Tool measuring system
●Spindle internal cooling
●CNC rotary table
●Chain chip conveyor
●Tool length setter and edge finder
●Water separator
●Spindle water cooling device
●Internet function
