Turning Center TCK-45L
TAJANE horizontal turning center combines advanced control and manufacturing technology. Reliability and performance make this series a favorite with demanding customers. Heavy-duty cutting spindles and rigid machine construction enable higher machining efficiency, better finishes and longer tool life for increased productivity and profitability.
Product use
Turning centers are widely used in the processing of precision shaft parts
Turning center, widely used in the processing of threaded parts
The turning center is suitable for the processing of precision connecting rod parts
Turning center, widely used in the processing of hydraulic pipe joint parts
Turning centers are widely used in the processing of precision shaft parts
Precision components

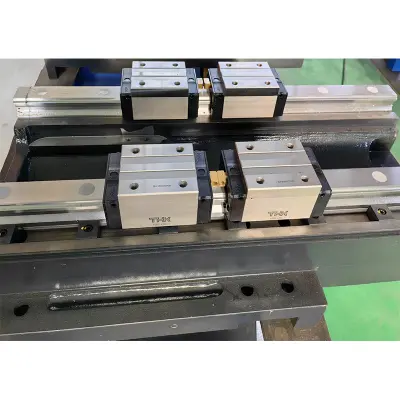

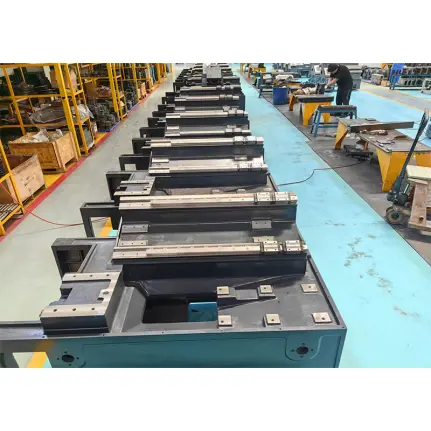

Machine tool configuration Taiwan Yintai C3 high-precision guide rail
Machine tool configuration Taiwan Shangyin high-precision P-grade screw rod
All spindles are extremely robust and thermally stable
The machine tool offers a wide range of chip removal and cooling systems
Machine offers a wide range of tooling options and quick-change tool holders
Configure brand CNC system
TAJANETurning centers machine tools, according to customer needs, provide various brands of CNC systems to meet customers' different needs for vertical machining centers, FANUC, SIEMENS, MITSUBISH, SYNTEC, 。
Fully enclosed packaging, escort for transportation
Fully enclosed wooden packaging
Turning Center TCK-45L, fully enclosed package, escort for transportation
Vacuum packaging in the box
Turning Center TCK-45L, with moisture-proof vacuum packaging inside the box, suitable for long-distance long-distance transportation
Clear mark
Turning Center TCK-45L, with clear markings in the packing box, loading and unloading icons, model weight and size, and high recognition
Solid wood bottom bracket
Turning Center TCK-45L, the bottom of the packing box is made of solid wood, which is hard and non-slip, and fastens to lock the goods
| Part | Model Item | TCK-45L |
| Main parameters | The maximum upper rotation diameter of the bed surface | Φ660 |
| Maximum machining diameter | Φ480(SHDY16BR cutter to edge 330) | |
| The maximum processing diameter on the tool post | Φ420 | |
| Maximum processing length | 420 | |
| Distance between two peaks | 610 | |
| Spindle and card Pan ginseng number | Spindle head form (optional chuck) | A2-6（8″） |
| Recommended spindle motor power | 11-15KW | |
| Spindle speed | 4200rpm | |
| Spindle hole diameter | Φ66 | |
| Bar diameter | Φ52 | |
| Feed part parameters | X/Z axis screw specifications | 3210/4010 |
| X-axis limit travel | 270 | |
| Recommended X-axis motor torque | 11N.M | |
| X/Z rail specification | 45/45 | |
| Z axis limit stroke | 610 | |
| Recommended Z-axis motor torque | 15N.M | |
| X, Z axis connection mode | Hard track | |
| Knife tower parameters | Optional turret | Direct |
| Recommended Turret Center Height | 170 | |
| Tailstock part | Socket diameter | 80 |
| Socket travel | 80 | |
| Tailstock maximum stroke | 420 | |
| Tailstock sleeve tapered hole | Mohs5# | |
| Appearance | Bed form/inclination | Integral/30° |
| Dimensions (length x width x height) | 1997×1240×1435 | |
| Part | Weight (approx.) | Approx. 2800KG |
Standard Configuration

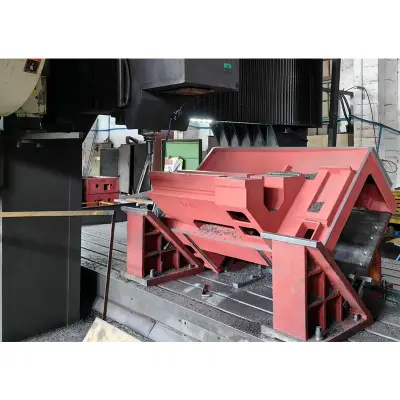

● High-quality resin sand casting, HT250, the height of the main shaft assembly and tailstock assembly is 60mm;
● Imported screw (THK);
● Imported ball rail (THK or Yintai);
● Spindle assembly: the spindle is Luoyi or Taida spindle assembly;
● Main motor pulley and belt;
● Screw bearing: FAG;
● Joint venture lubrication system (River Valley);
● Black, according to the color palette provided by the customer, the paint color can be configured;
● Encoder assembly (without encoder);
● One X/Z shaft coupling (R+M);
● Braking system.
