Manual Knee Milling Machine MX-2HG
Purpose
Manufacturing Process
The TAJANE turret milling machine is manufactured using Taiwan’s original drawings, and the casting is done using the Mihanna casting process with TH250 material. It is manufactured through natural failure, tempering heat treatment, and precision cold processing.

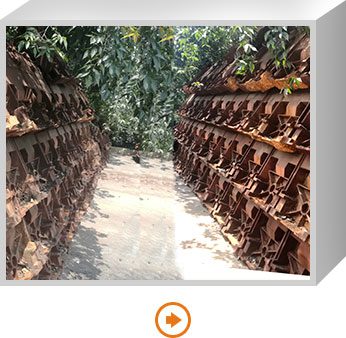

Meehanite casting process

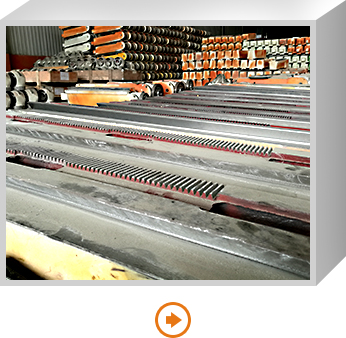

Elimination of internal stress

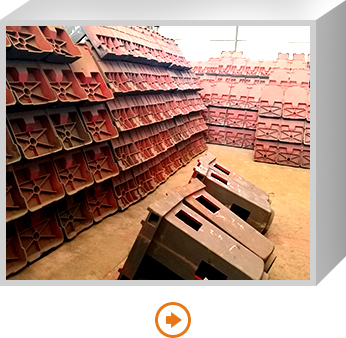

Tempering heat treatment

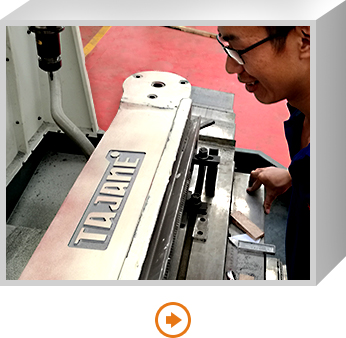

Precision machining
Lifting table processing

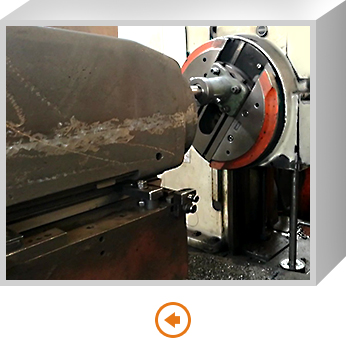

Lathe processing

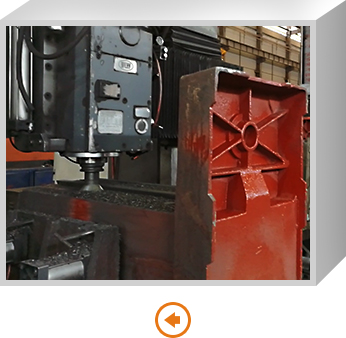

Cantilever machining

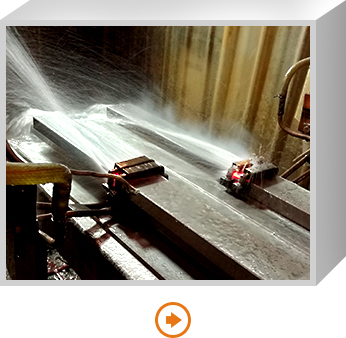

High frequency quenching
Fine carving
Premium Components

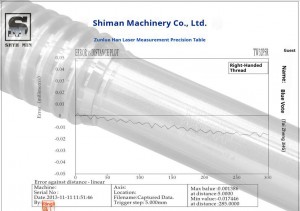

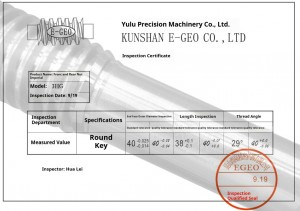

Taiwan original precision components; X, Y, Z three-way lead screws of Taiwan brand; The five major components of the milling head are purchased from original Taiwan sources.
Electrical Safety
The electrical control box has dust-proof, waterproof, and anti leakage functions. Using electrical components from brands such as Siemens and Chint. Set up 24V safety relay protection, machine grounding protection, door opening power-off protection, and multiple power-off protection settings
Using European Standard Cable
Main cable2.5MM², Control cablel 1.5MM²
Electrical components are Siemens And CHNT
Identification clear
Convenient maintenance
Earthing protection
Door s open and power will be cut off.
Press emergency stop Power cut off.
Power off switch
Master switch Power Indicator Lamp
Earthing protection
Emergency stop button
Sturdy Packaging

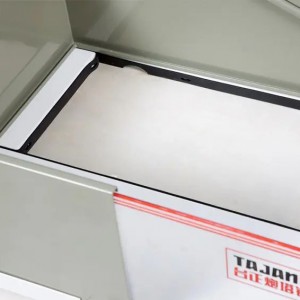

The machine tool’s interior is vacuum-sealed for moisture protection, and its exterior packaged with fumigation-free solid wood and fully enclosed steel strips to ensure transport safety. Free delivery is offered at major domestic ports and customs clearance ports, with safe transport to all global regions.

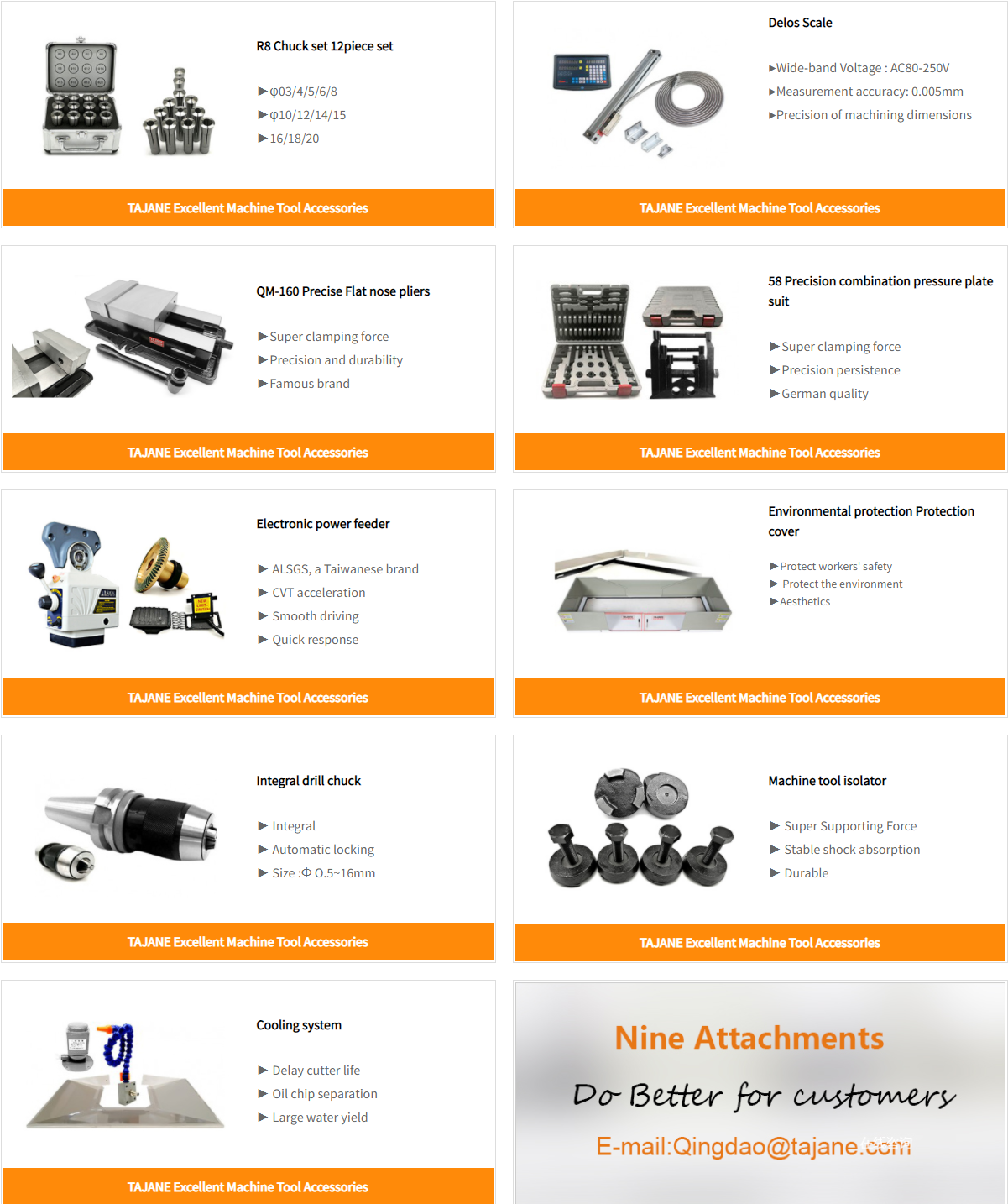

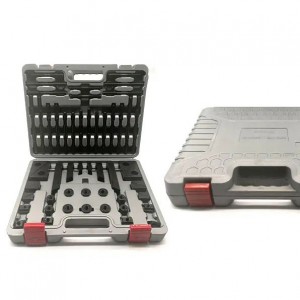

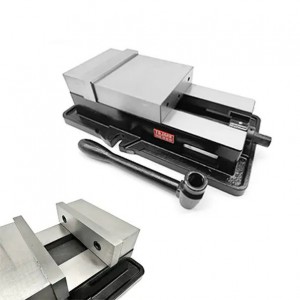

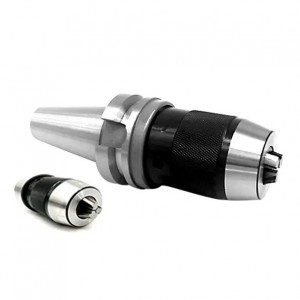

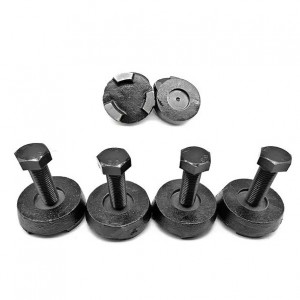

Milling machine accessories meet different processing needs
Standard equipment: Nine major accessories are included as gifts to meet customers’ different processing needs.

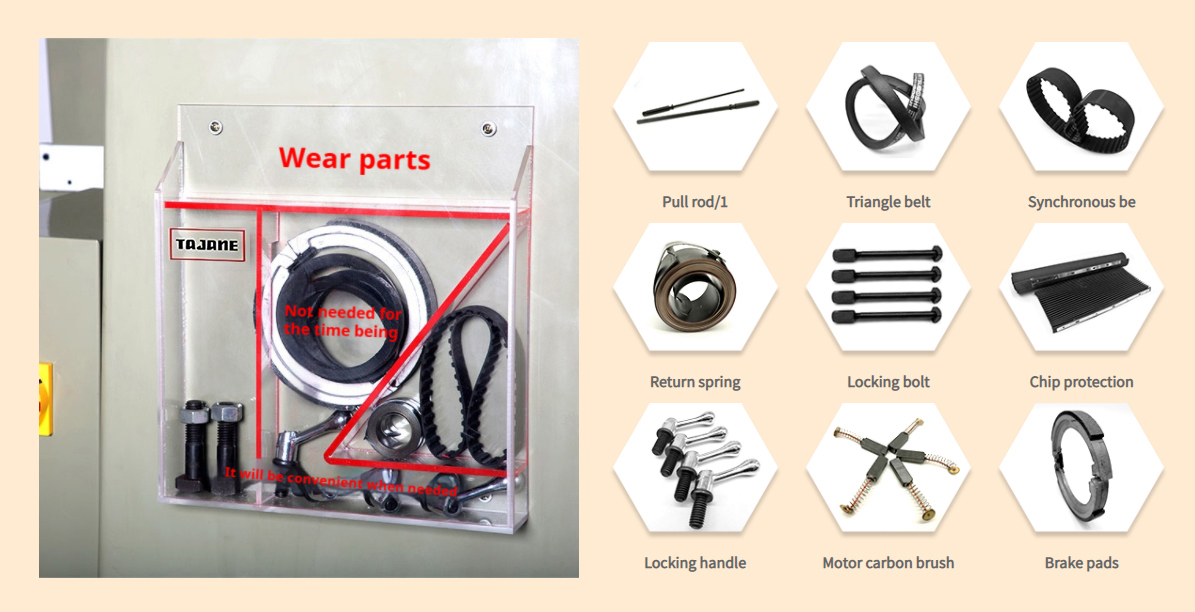

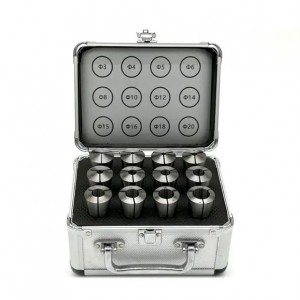

Present nine kinds of wearing parts to solve your worries
Consumable parts: Nine key consumables are included for peace of mind. You may never need them, but they’ll save time when you do.

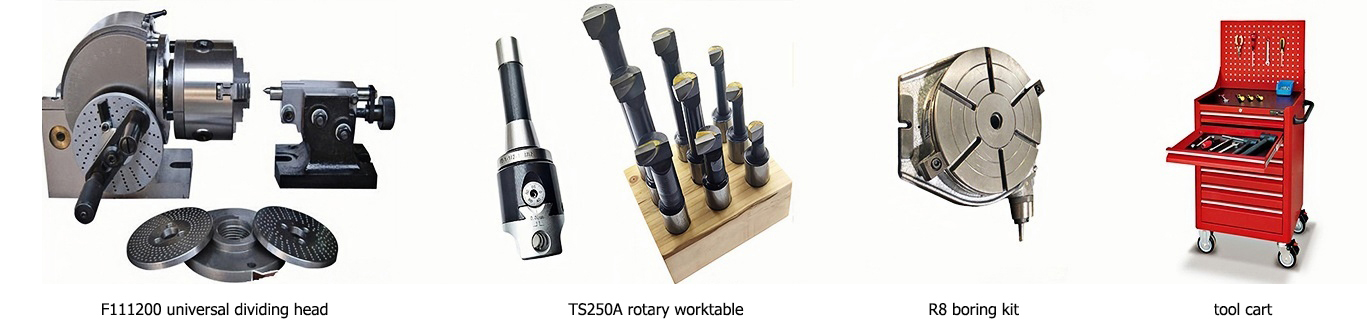

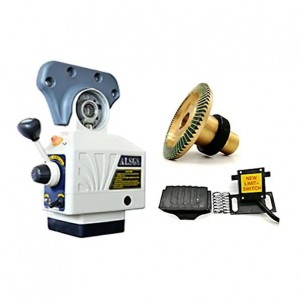

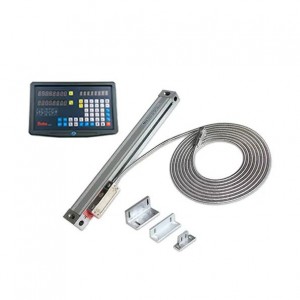

Machine tool additional equipment, suitable for various processing
Additional equipment: Auxiliary tools expand functionality for special/complex processing (optional, extra cost).
| Model | MX-2HG |
|---|---|
| Strength | |
| Network voltage | Three-phase 380V (or 220V, 415V, 440V) |
| Frequency | 50Hz（or 60Hz） |
| Main drive motor power | 3HP/2.2KW |
| Total power / current load | 3kw/5A |
| Machining parameters | |
| Worktable size | 1067×230mm |
| X-axis travel | 740mm |
| Y-axis travel | 360mm |
| Z-axis travel | 330mm |
| Workbench | |
| Workbench T-slot | 3×16×65mm |
| Maximum load capacity of workbench | 200kg |
| Distance from spindle end face to workbench | 360mm（50mm heightening optional） |
| Distance from spindle center to guideway surface | 180mm |
| Milling head spindle | |
| Type of spindle taper | R8 spindle |
| Spindle sleeve stroke | 120mm |
| Spindle feed speed | 0.04；0.08；0.15 |
| Outer diameter of spindle | 85.725mm |
| Milling head speed | |
| Spindle speed stages | 16 stages |
| Speed range | 70-5440 rpm |
| Number of steps (low range) | 70、110、180、270、600、975、1540、2310rpm |
| Number of steps (high range) | 140、220、360、540、1200、1950、3080、5440rpm |
| Structure | |
| Swivel milling head | ±90° left and right, ±45° front and back, 360° cantilever |
| Guideway type (X, Y, Z) | ▲ ▲ ▲ Dovetail guide |
| Ram extension arm | 380mm |
| Lubrication method | Electronic automatic lubrication |
| Aspect | |
| Length | 1522mm |
| Width | 1500mm |
| Height | 1640mm |
| Weight | 1000kg |
