Manual Knee Milling Machine MX-2HG
A manual knee milling machine that anyone can easily master, hobbyists and artists can have a smaller and more economical manual knee milling machine to help them create their own works, low price, high quality manual knee milling machine from China
Taiwan's original drawings manufacturing process
Mihanna Casting Technology
Elimination of internal stress
Tempering heat treatment
Precision machining
Lifting table processing
Lathe processing
Cantilever machining
High frequency quenching
Fine carving
Taiwan's original boutique parts, the only guarantee of the quality of precision
Milling machine accessories meet different processing needs
R8 Chuck set 12piece set
►φ03/4/5/6/8
►φ10/12/14/15
►16/18/20
Delos Scale
▶Wide-band Voltage : AC80-250V
▶Measurement accuracy: 0.005mm
▶Precision of machining dimensions
QM-160 Precise Flat nose pliers
►Super clamping force
►Precision and durability
►Famous brand
58 Precision combination pressure plate suit
►Super clamping force
►Precision persistence
►German quality
Electronic power feeder
► ALSGS, a Taiwanese brand
► CVT acceleration
► Smooth driving
► Quick response
Environmental protection Protection cover
Integral drill chuck
► Integral
► Automatic locking
► Size :Φ O.5~16mm
Machine tool isolator
► Super Supporting Force
► Stable shock absorption
► Durable
Cooling system
► Delay cutter life
► Oil chip separation
► Large water yield
PRESENT NINE CONSUMABLES TO SOLVE YOUR WORRIES
Pull rod/1
Triangle belt
Synchronous be
Return spring
Locking bolt
Chip protection
Locking handle
Motor carbon brush
Brake pads
safety of electrical appliances
Using European Standard Cable
Main cable2.5MM², Control cablel 1.5MM²
Electrical components are Siemens And CHNT
Identification clear
Convenient maintenance
Earthing protection
Door s open and power will be cut off.
Press emergency stop Power cut off.
Power off switch
Master switch Power Indicator Lamp
Earthing protection
Emergency stop button

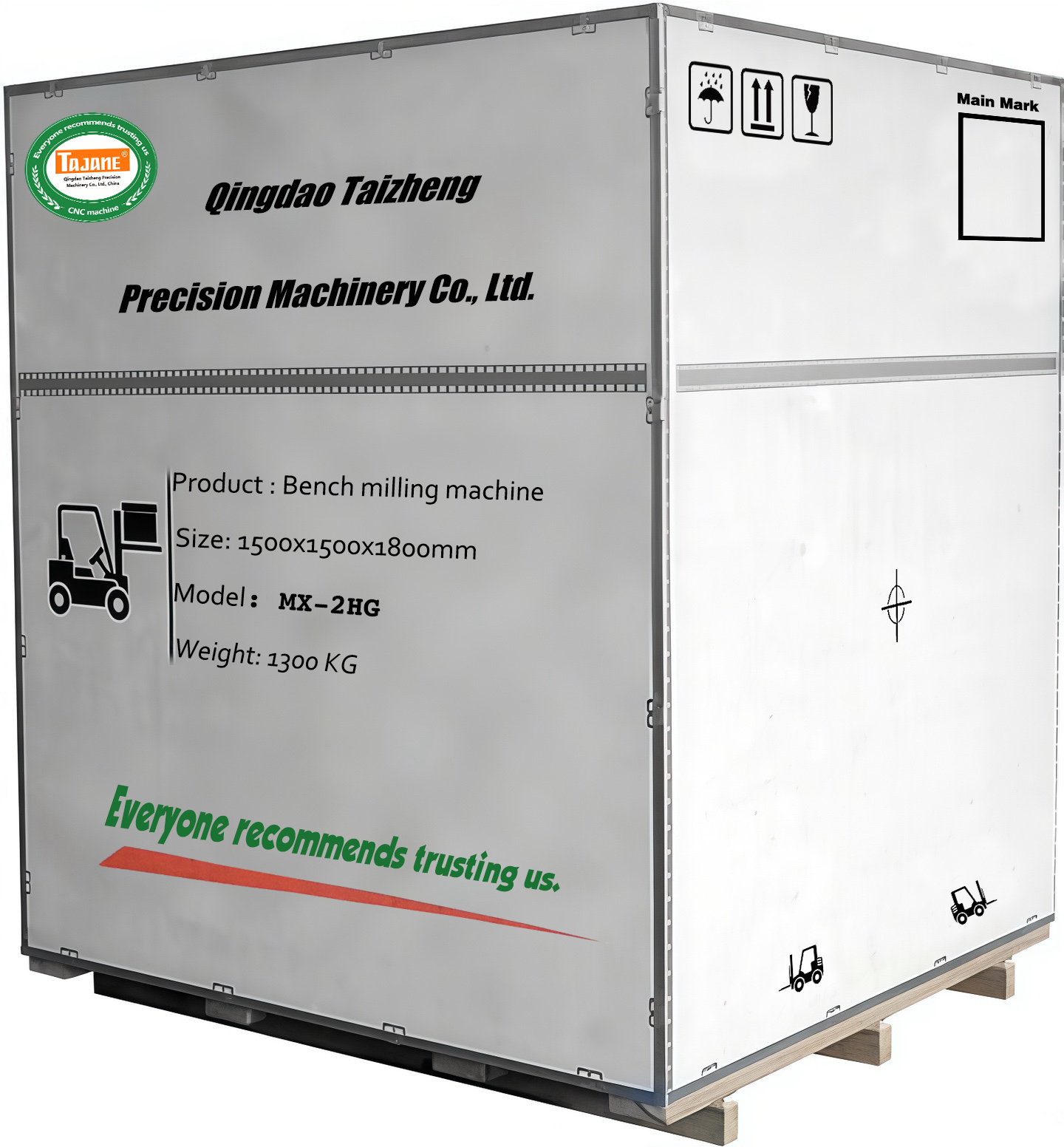

packing
Steel belt fastener Wood packaging ,
Locking connection Firm tensile strength.
Free transportation in China
Undertaking transportation insurance.
Perfect after-sales service
Mechanical Parts and Electrical Appliances
Guaranteed for 12 Months
| Model | MX-2HG |
| Work Table | 1067 x 230mm |
| Max. Longitudinal Travel | 740mm (Automatic feed) |
| Max. Vertical Travel | 330mm |
| Max. Cross Travel(Z-axis) | 360mm |
| Guide rail form(X、Y、Z) | ▲▲▲ |
| Distance from spindle to table | 360mm |
| Horsepower | 3HP |
| Voltage | Three phase 380V(or220V、415V、440V) |
| Frequency | 50/60 |
| Spindle Taper Type | R8 |
| Step Number(Low Range) (High Range) | 16steps 70、110、180、270、600、975、1540、2310rpm 140、220、360、540、1200、1950、3080、5440rpm |
| Spindle Quill Travel | 120mm |
| Quill Feed/Quill O.D. | 0.04、0.08、0.15/85.725mm |
| T-SlotSlot No.×Width×Pitch | 3x 16x 65mm |
| Ram Travel | 380mm |
| Machine Dimensions | 1522x1500x1640 |
| Weight | 1000kg |
Accessories
● X, Y, Z three-axis grating ruler
● X, Y, Z direction electronic tool feeder
● QH160 precision flat pliers
● 58-piece set of M12 combined pressure plate
● 12-piece set of high-precision R8 collet set
● Cooling system and water pan
● A set of powerful integrated drill chuck
● A set of environmentally friendly protective covers
Random wearing parts (gift)
● Two pieces of milling head bolts
● Two carbon brushes for knife feeder
● One piece of milling head brake pad
● One piece of automatic knife spring
● One V-belt
● One synchronous belt
● One rod
● A set of anti-dandruff leather
● Workbench locking handle four pieces
Special accessories
● Rotary table
● dividing head
● Parallel blocks
