Turning Center TCK-20H

Short Description:

Absolute position encoders eliminate homing and increase accuracy
Small footprint with a maximum turning diameter of 8.66 inches and a maximum turning length of 20 inches.
Heavy-duty machine construction provides quality for rigid and heavy-duty cutting.
Strong castings for vibration dampening and rigidity.
Precision ground ball screw
Protects all shafts to protect castings, ball screws and drive trains.

Product Detail

Product Parameters


Product Tags

The turning center is mainly used for turning disc parts and shaft parts. It is suitable for processing rotary parts with complex shapes. Drilling, reaming, tapping, milling and rolling operations.

Product use

Product use (1)

Turning centers are widely used in the processing of shells and disk parts

Product use (2)

Turning center, widely used in the processing of threaded parts

Product use (3)

The turning center is suitable for the processing of precision connecting rod parts

Product use (3)

Turning center, widely used in the processing of hydraulic pipe joint parts

Product use (4)

Turning centers are widely used in the processing of precision shaft parts

Precision components

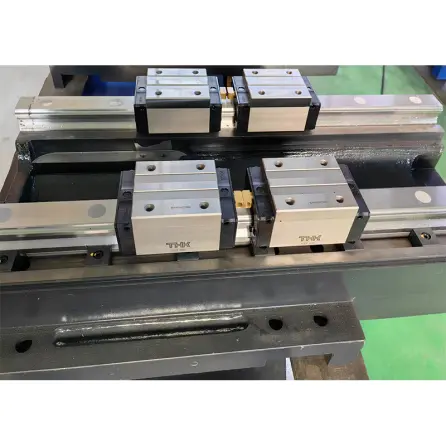

Precision components (1)

Machine tool configuration Taiwan Yintai C3 high-precision guide rail

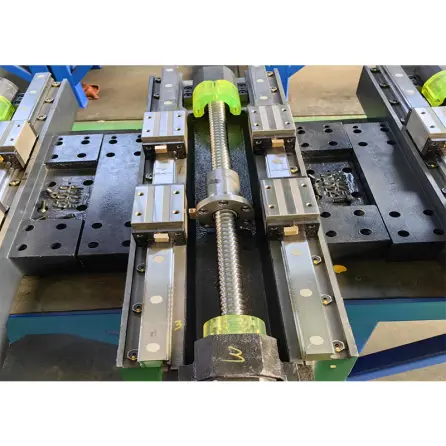

Precision components (2)

Machine tool configuration Taiwan Shangyin high-precision P-grade screw rod

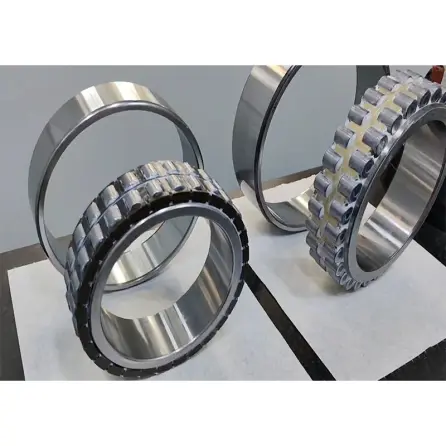

Precision components (3)

All spindles are extremely robust and thermally stable

Precision components (5)

The machine tool offers a wide range of chip removal and cooling systems

Precision components (4)

Machine offers a wide range of tooling options and quick-change tool holders

Configure brand CNC system

TAJANETurning centers machine tools, according to customer needs, provide various brands of CNC systems to meet customers' different needs for vertical machining centers, FANUC, SIEMENS, MITSUBISH, SYNTEC, 。

Mitsubishi M8OB

Configure brand CNC system


Configure brand CNC system


Configure brand CNC system

Mitsubishi M8OB

Configure brand CNC system

Fully enclosed packaging, escort for transportation


Fully enclosed wooden packaging

Turning Center TCK-20H, fully enclosed package, escort for transportation


Vacuum packaging in the box

Turning Center TCK-20H, with moisture-proof vacuum packaging inside the box, suitable for long-distance long-distance transportation


Clear mark

Turning Center TCK-20H, with clear markings in the packing box, loading and unloading icons, model weight and size, and high recognition


Solid wood bottom bracket

Turning Center TCK-20H, the bottom of the packing box is made of solid wood, which is hard and non-slip, and fastens to lock the goods

  • Previous:
  • Next:

  • Part Model Items TCK-20H
    Main parameters The maximum upper rotation diameter of the bed surface Φ630
    Maximum machining diameter Φ380
    The maximum processing diameter on the tool post Φ380
    Maximum processing length 500
    Spindle and card Pan ginseng number Spindle head form (optional chuck) A2-6(8”)
    Recommended spindle motor power 11-15KW
    Spindle speed 3000rpm
    Spindle hole diameter Φ61
    Bar diameter Φ52
    Feed part parameters X/Y/Z axis screw specification 3210/3210/4010/
    X/Y/Z axis limit travel 230/60(±30)/500
    Recommended X/Y/Z axis motor torque 11N.M/11 N.M/11N.M
    X/Y/Z axis rail (guide rail) specification Hard track
    X/Z/Y axis connection method Direct
    Knife tower parameters Power Turret Chengxin TCSDY80H-12T-330
    Number of stations 12
    Power head specification BMT55/ER32
    Power head speed rpm 5000rpm
    Recommended power head motor power 2.5Kw
    Power head to motor transmission ratio 1:1
    Tailstock part Socket diameter 75
    Socket travel 80
    Tailstock maximum stroke 400
    Tailstock sleeve tapered hole Mohs 4#
    Appearance Bed form and inclination Integral/45°
    Dimensions (length × width × height) 2100×1110×1670

    Standard Configuration

    ● High-quality resin sand casting, HT250, the height of the main shaft assembly and tailstock assembly is 42mm;
    ● Imported screw (THK);
    ● Imported ball rail (THK or Yintai);
    ● Spindle assembly: the spindle is Luoyi or Taida spindle assembly;
    ● Main motor pulley and belt;
    ● Screw bearing: FAG;
    ● Joint venture lubrication system (River Valley);
    ● Black, according to the color palette provided by the customer, the paint color can be configured;
    ● Encoder assembly (without encoder);
    ● One X/Z shaft coupling (R+M);
    ● Packaging: wooden base + anti-rust + moisture-proof;
    ● Braking system (the price of this configuration is extra
