VERTICAL TURRET MILLING MACHINE MX-6LW
TAJANE MX-6LW high-power high-strength vertical and horizontal turret milling machine The end milling head can rotate 90° left and right, 45° front and back, and 360° in the horizontal plane. The horizontal milling spindle can be stretched back and forth to realize side drilling and boring. and other functions
Do you need such a milling machine?
![x](http://www.ncmillingmachine.com/uploads/x.jpg)
Taiwan's original drawings manufacturing process
![1](http://www.ncmillingmachine.com/uploads/1.jpg)
![21](http://www.ncmillingmachine.com/uploads/21.jpg)
![3](http://www.ncmillingmachine.com/uploads/3.jpg)
Mihanna Casting Technology
Elimination of internal stress
Tempering heat treatment
![62](http://www.ncmillingmachine.com/uploads/62.jpg)
![5](http://www.ncmillingmachine.com/uploads/5.jpg)
![4](http://www.ncmillingmachine.com/uploads/4.jpg)
Precision machining
Lifting table processing
Lathe processing
![7](http://www.ncmillingmachine.com/uploads/71.jpg)
![8](http://www.ncmillingmachine.com/uploads/8.jpg)
![9](http://www.ncmillingmachine.com/uploads/9.jpg)
Cantilever machining
High frequency quenching
Fine carving
Taiwan's original boutique parts, the only guarantee of the quality of precision
![10](http://www.ncmillingmachine.com/uploads/10.jpg)
![11](http://www.ncmillingmachine.com/uploads/11.jpg)
![X.Y](http://www.ncmillingmachine.com/uploads/X.Y.jpg)
![x1](http://www.ncmillingmachine.com/uploads/x1.jpg)
Milling machine accessories meet different processing needs
![15pic](http://www.ncmillingmachine.com/uploads/15pic.jpg)
15pic RNT40Chuck group
►φ03/4/5/6/8
►φ10/12/14/15
►16/18/20
![Delos Scale](http://www.ncmillingmachine.com/uploads/Delos-Scale.jpg)
Delos Scale
Wide-band Voltage : AC80-250V ◀
Measurement accuracy: 0.005mm ◀
Accurate Display of Machining Dimensions ◀
![QM-160](http://www.ncmillingmachine.com/uploads/QM-160.jpg)
QM-160 Precise Flat nose pliers
►Super clamping force
►Precision and durability
►Famous brand
![58 Precision combination pressure plate suit](http://www.ncmillingmachine.com/uploads/58-Precision-combination-pressure-plate-suit.jpg)
58 Precision combination pressure plate suit
►Super clamping force
►Precision persistence
►German quality
![G1-1](http://www.ncmillingmachine.com/uploads/G1-1.jpg)
Gear type power feed
►Walk steadily
►Six gear shift
►High power motor
►Built-in clutch
![Environmental protection](http://www.ncmillingmachine.com/uploads/Environmental-protection.jpg)
Environmental protection Protection cover
► 保护工人安全
► 保护环境
►美观
![Integral drill chuck](http://www.ncmillingmachine.com/uploads/Integral-drill-chuck.jpg)
Integral drill chuck
► Integral
► Automatic locking
► Size :Φ O.5~16mm
![Machine tool isolator](http://www.ncmillingmachine.com/uploads/Machine-tool-isolator.jpg)
Machine tool isolator
► Super Supporting Force
► Stable shock absorption
► Durable
![Cooling system](http://www.ncmillingmachine.com/uploads/Cooling-system.jpg)
Cooling system
► Delay cutter life
► Oil chip separation
► Large water yield
![gk](http://www.ncmillingmachine.com/uploads/gk.jpg)
PRESENT NINE CONSUMABLES TO SOLVE YOUR WORRIES
![x21](http://www.ncmillingmachine.com/uploads/x211.jpg)
![Pull rod/1](http://www.ncmillingmachine.com/uploads/1.png)
Pull rod/1
![2](http://www.ncmillingmachine.com/uploads/2.png)
Triangle belt
![3](http://www.ncmillingmachine.com/uploads/3.png)
Synchronous be
![4](http://www.ncmillingmachine.com/uploads/4.png)
Return spring
![5](http://www.ncmillingmachine.com/uploads/5.png)
Locking bolt
![6](http://www.ncmillingmachine.com/uploads/6.png)
Chip protection
![7](http://www.ncmillingmachine.com/uploads/7.png)
Locking handle
![8](http://www.ncmillingmachine.com/uploads/8.png)
Motor carbon brush
![9](http://www.ncmillingmachine.com/uploads/9.png)
Brake pads
safety of electrical appliances
![CHNT (1)](http://www.ncmillingmachine.com/uploads/CHNT-1.jpg)
Using European Standard Cable
Main cable2.5MM², Control cablel 1.5MM²
Electrical components are Siemens And CHNT
![CHNT (2)](http://www.ncmillingmachine.com/uploads/CHNT-2.jpg)
![CHNT (3)](http://www.ncmillingmachine.com/uploads/CHNT-3.jpg)
Identification clear
Convenient maintenance
![MX-4LW (1)](http://www.ncmillingmachine.com/uploads/MX-4LW-1.jpg)
![MX-4LW (2)](http://www.ncmillingmachine.com/uploads/MX-4LW-2.jpg)
![MX-4LW (3)](http://www.ncmillingmachine.com/uploads/MX-4LW-3.jpg)
![MX-4LW (4)](http://www.ncmillingmachine.com/uploads/MX-4LW-4.jpg)
![Electrical safety (1)](http://www.ncmillingmachine.com/uploads/Electrical-safety-1.jpg)
Earthing protection
Door s open and power will be cut off.
Press emergency stop Power cut off.
![Electrical safety (2)](http://www.ncmillingmachine.com/uploads/Electrical-safety-2.jpg)
Power off switch
![Electrical safety (3)](http://www.ncmillingmachine.com/uploads/Electrical-safety-3.jpg)
Master switch Power Indicator Lamp
![Electrical safety (4)](http://www.ncmillingmachine.com/uploads/Electrical-safety-4.jpg)
Earthing protection
![Electrical safety (5)](http://www.ncmillingmachine.com/uploads/Electrical-safety-5.jpg)
Emergency stop button

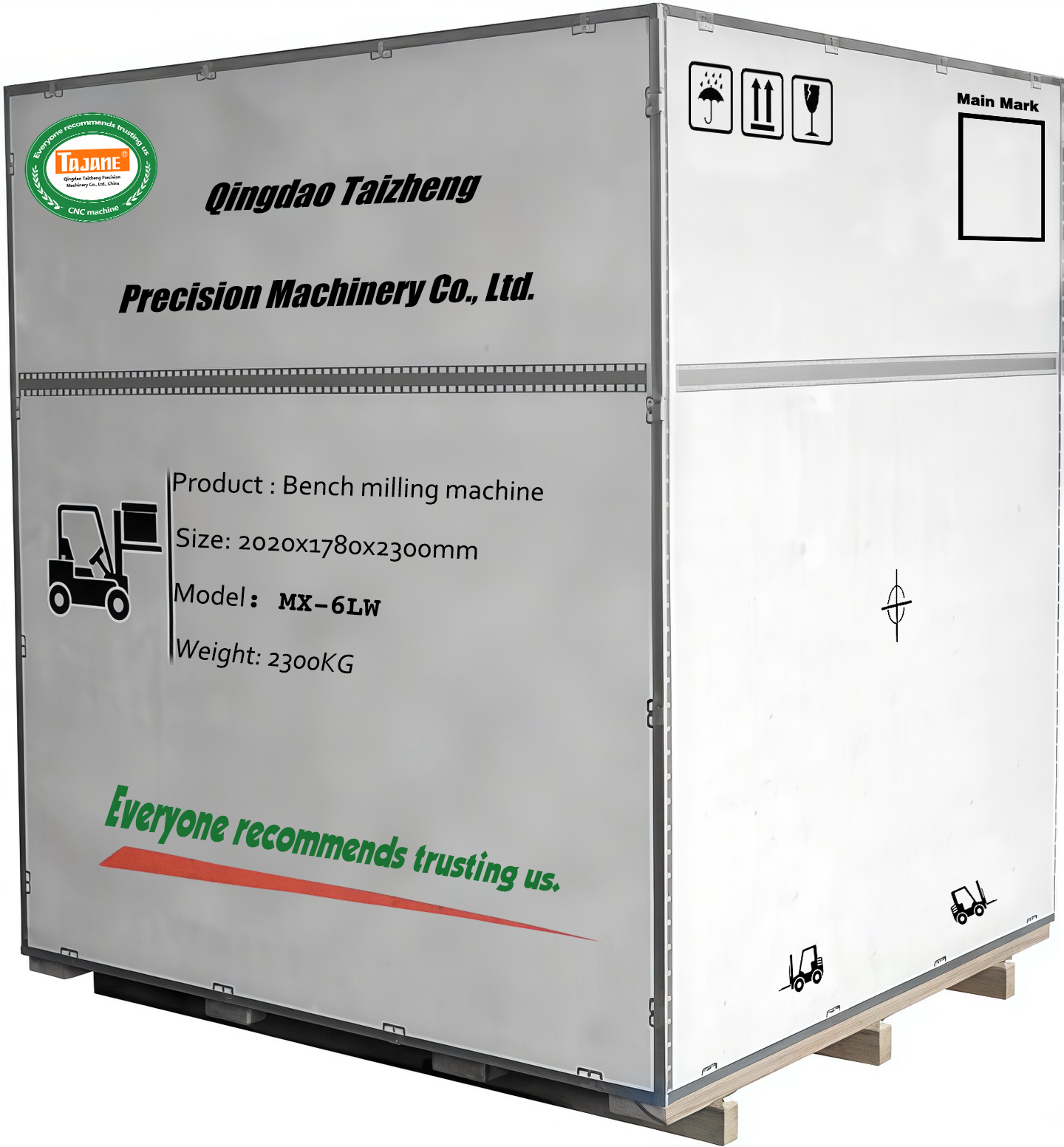

packing
![logo](http://www.ncmillingmachine.com/uploads/logo2.jpg)
![MX-4LW (1)](http://www.ncmillingmachine.com/uploads/MX-4LW-1.png)
Steel belt fastener Wood packaging ,
Locking connection Firm tensile strength.
Free transportation in China
Undertaking transportation insurance.
![MX-4LW (1)](http://www.ncmillingmachine.com/uploads/MX-4LW-11.jpg)
![MX-4LW (2)](http://www.ncmillingmachine.com/uploads/MX-4LW-21.jpg)
![MX-4LW (3)](http://www.ncmillingmachine.com/uploads/MX-4LW-31.jpg)
![MX-4LW (4)](http://www.ncmillingmachine.com/uploads/MX-4LW-41.jpg)
Perfect after-sales service
Mechanical Parts and Electrical Appliances
Guaranteed for 12 Months
Model | MX-6LW |
Work Table | 1372 x 330mm |
Max. Longitudinal Travel | 1030mm |
Max. Vertical Travel | 400mm |
Max. Cross Travel | 380mm |
(X、Y、Z) Guide rail form | ▲■■ |
Distance from spindle to table | 700mm |
Recumbent spindle motor | 3HP |
Horizontal spindle speed section number | 9 |
Frequency | 60-1320rpm |
Recumbent spindle stroke | 120mm |
Horizontal milling head specification | NT40 |
Vertical spindle motor | 5HP |
Vertical spindle speed | 80-5440rpm |
Vertical spindle stroke | 120mm |
Specification for vertical milling head | NT40 |
T-Slot Slot No.×Width×Pitch | 3x 16x 65mm |
Machine Dimensions | 1980x1750x2050 |
Weight | 2300kg |
Accessories
● X, Y, Z three-axis grating ruler
● X, Y direction mechanical tool feeder
● QH160 precision flat pliers
● 58-piece set of M12 combined pressure plate
● 12-piece set of high-precision R8 collet set
● Cooling system and water pan
● A set of powerful integrated drill chuck
● A set of environmentally friendly protective covers
Random wearing parts (gift)
● Two pieces of milling head bolts
● One piece of milling head brake pad
● One piece of automatic knife spring
● One V-belt
● One synchronous belt
● One rod
● A set of anti-dandruff leather
● Workbench locking handle four pieces
Special accessories
● Rotary table
● dividing head
● Parallel blocks
