Three-phase knee milling machine MX-8HG
MX-8HG three-phase knee is a powerful milling machine, a heavy-duty manual knee joint milling machine, equipped with a large-aperture heavy-duty powerful 5HP or 7HP heavy-cutting milling head, X, Y, Z super-large stroke, table length: 1524mm; X stroke: 1200mm; X and Y adopt Taiwan original ball screw, and the load capacity of the workbench reaches 950 kg. The three-phase knee is a powerful milling machine widely used in the processing of large mold parts, precision and complex parts processing, and auto parts processing.
Do you need such a milling machine?
![5HG_04](http://www.ncmillingmachine.com/uploads/5HG_04.jpg)
Taiwan's original drawings manufacturing process
![1](http://www.ncmillingmachine.com/uploads/1.jpg)
![21](http://www.ncmillingmachine.com/uploads/21.jpg)
![3](http://www.ncmillingmachine.com/uploads/3.jpg)
Mihanna Casting Technology
Elimination of internal stress
Tempering heat treatment
![62](http://www.ncmillingmachine.com/uploads/62.jpg)
![5](http://www.ncmillingmachine.com/uploads/5.jpg)
![4](http://www.ncmillingmachine.com/uploads/4.jpg)
Precision machining
Lifting table processing
Lathe processing
![7](http://www.ncmillingmachine.com/uploads/71.jpg)
![8](http://www.ncmillingmachine.com/uploads/8.jpg)
![9](http://www.ncmillingmachine.com/uploads/9.jpg)
Cantilever machining
High frequency quenching
Fine carving

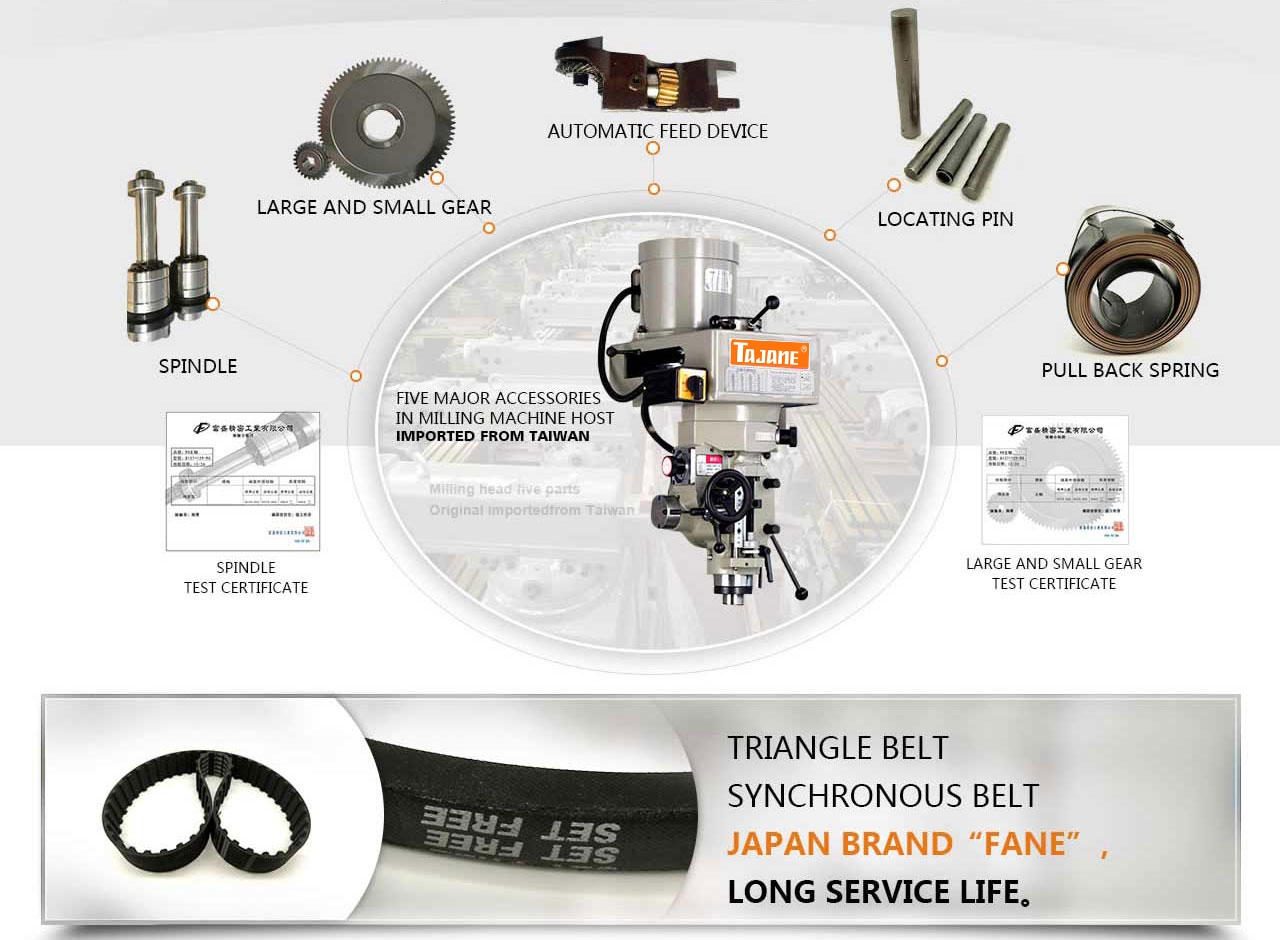

Taiwan's original boutique parts, the only guarantee of the quality of precision
![10](http://www.ncmillingmachine.com/uploads/10.jpg)
![11](http://www.ncmillingmachine.com/uploads/11.jpg)
![X.Y](http://www.ncmillingmachine.com/uploads/X.Y.jpg)
![ICO_r3_c1_01](http://www.ncmillingmachine.com/uploads/ICO_r3_c1_01.jpg)
Milling machine accessories meet different processing needs
![15pic](http://www.ncmillingmachine.com/uploads/15pic.jpg)
15pic RNT40Chuck group
►φ03/4/5/6/8
►φ10/12/14/15
►16/18/20
![Delos Scale](http://www.ncmillingmachine.com/uploads/Delos-Scale.jpg)
Delos Scale
Wide-band Voltage : AC80-250V ◀
Measurement accuracy: 0.005mm ◀
Accurate Display of Machining Dimensions ◀
![QM-160](http://www.ncmillingmachine.com/uploads/QM-160.jpg)
QM-160 Precise Flat nose pliers
►Super clamping force
►Precision and durability
►Famous brand
![58 Precision combination pressure plate suit](http://www.ncmillingmachine.com/uploads/58-Precision-combination-pressure-plate-suit.jpg)
58 Precision combination pressure plate suit
►Super clamping force
►Precision persistence
►German quality
![G1-1](http://www.ncmillingmachine.com/uploads/G1-1.jpg)
Electronic power feeder
►ALSGS台湾品牌
►CVT提速
►行走平稳
►反映快速
![Environmental protection](http://www.ncmillingmachine.com/uploads/Environmental-protection.jpg)
Environmental protection Protection cover
► 保护工人安全
► 保护环境
►美观
![Integral drill chuck](http://www.ncmillingmachine.com/uploads/Integral-drill-chuck.jpg)
Integral drill chuck
► Integral
► Automatic locking
► Size :Φ O.5~16mm
![Machine tool isolator](http://www.ncmillingmachine.com/uploads/Machine-tool-isolator.jpg)
Machine tool isolator
► Super Supporting Force
► Stable shock absorption
► Durable
![MX-2HG (12)](http://www.ncmillingmachine.com/uploads/MX-2HG-12.jpg)
Cooling system
► Delay cutter life
► Oil chip separation
► Large water yield
![gk](http://www.ncmillingmachine.com/uploads/gk.jpg)

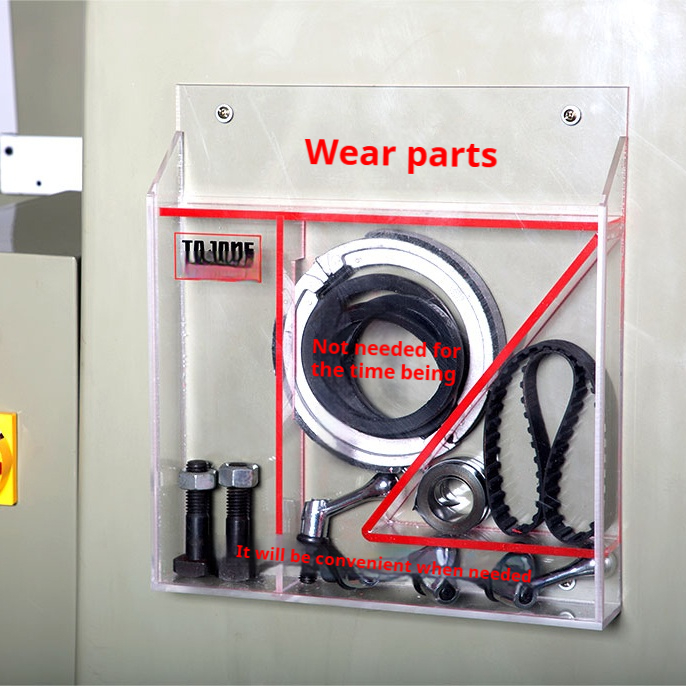

PRESENT NINE CONSUMABLES TO SOLVE YOUR WORRIES
![MX-2HG](http://www.ncmillingmachine.com/uploads/MX-2HG1.jpg)
![Pull rod/1](http://www.ncmillingmachine.com/uploads/1.png)
Pull rod/1
![2](http://www.ncmillingmachine.com/uploads/2.png)
Triangle belt
![3](http://www.ncmillingmachine.com/uploads/3.png)
Synchronous be
![4](http://www.ncmillingmachine.com/uploads/4.png)
Return spring
![5](http://www.ncmillingmachine.com/uploads/5.png)
Locking bolt
![6](http://www.ncmillingmachine.com/uploads/6.png)
Chip protection
![7](http://www.ncmillingmachine.com/uploads/7.png)
Locking handle
![8](http://www.ncmillingmachine.com/uploads/8.png)
Motor carbon brush
![9](http://www.ncmillingmachine.com/uploads/9.png)
Brake pads
Configure brand CNC system
![CHNT (1)](http://www.ncmillingmachine.com/uploads/CHNT-1.jpg)
Using European Standard Cable
Main cable2.5MM², Control cablel 1.5MM²
Electrical components are Siemens And CHNT
![CHNT (2)](http://www.ncmillingmachine.com/uploads/CHNT-2.jpg)
![CHNT (3)](http://www.ncmillingmachine.com/uploads/CHNT-3.jpg)
Identification clear
Convenient maintenance
![MX-4LW (1)](http://www.ncmillingmachine.com/uploads/MX-4LW-1.jpg)
![MX-4LW (2)](http://www.ncmillingmachine.com/uploads/MX-4LW-2.jpg)
![MX-4LW (3)](http://www.ncmillingmachine.com/uploads/MX-4LW-3.jpg)
![MX-4LW (4)](http://www.ncmillingmachine.com/uploads/MX-4LW-4.jpg)
![Electrical safety (1)](http://www.ncmillingmachine.com/uploads/Electrical-safety-1.jpg)
Earthing protection
Door s open and power will be cut off.
Press emergency stop Power cut off.
![Electrical safety (2)](http://www.ncmillingmachine.com/uploads/Electrical-safety-2.jpg)
Power off switch
![Electrical safety (3)](http://www.ncmillingmachine.com/uploads/Electrical-safety-3.jpg)
Master switch Power Indicator Lamp
![Electrical safety (4)](http://www.ncmillingmachine.com/uploads/Electrical-safety-4.jpg)
Earthing protection
![Electrical safety (5)](http://www.ncmillingmachine.com/uploads/Electrical-safety-5.jpg)
Emergency stop button

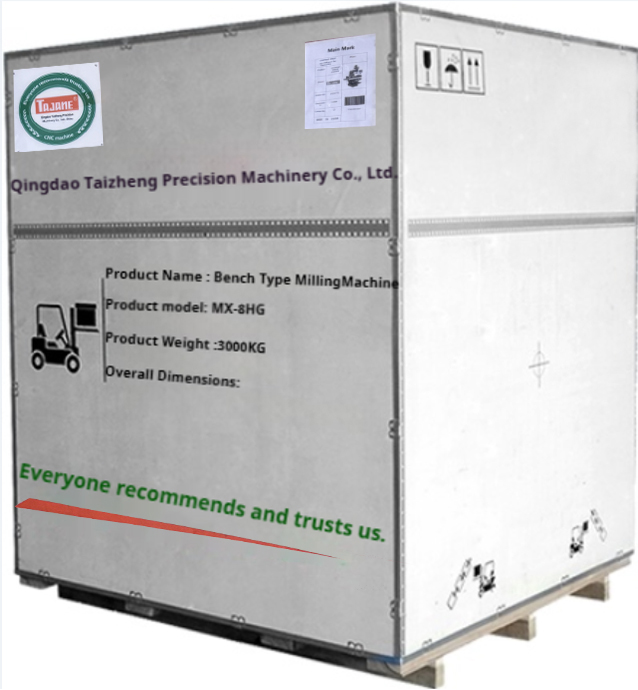

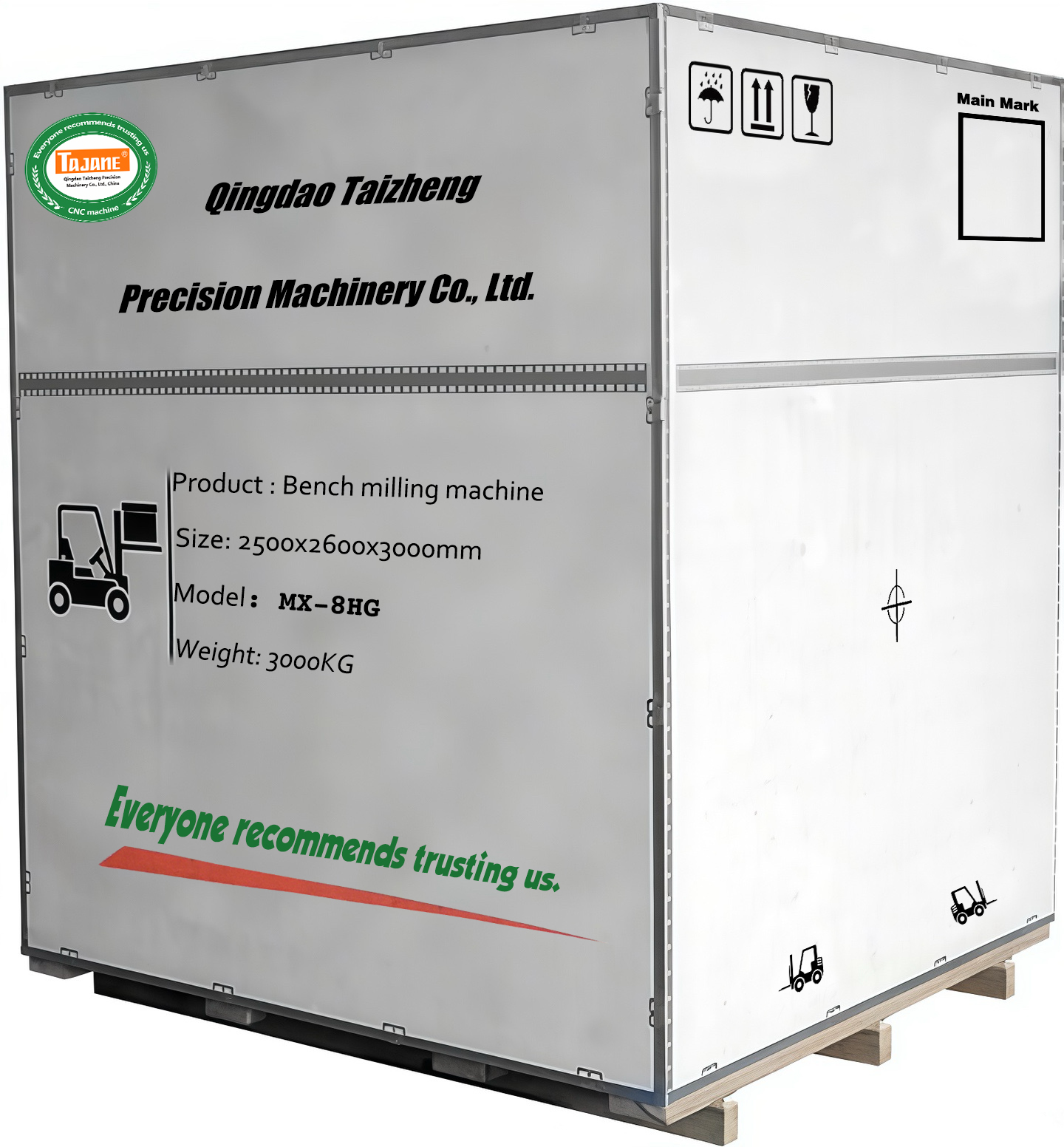

packing
![logo](http://www.ncmillingmachine.com/uploads/logo2.jpg)
![MX-4LW (1)](http://www.ncmillingmachine.com/uploads/MX-4LW-1.png)
Steel belt fastener Wood packaging ,
Locking connection Firm tensile strength.
Free transportation in China
Undertaking transportation insurance.
![MX-4LW (1)](http://www.ncmillingmachine.com/uploads/MX-4LW-11.jpg)
![MX-4LW (2)](http://www.ncmillingmachine.com/uploads/MX-4LW-21.jpg)
![MX-4LW (3)](http://www.ncmillingmachine.com/uploads/MX-4LW-31.jpg)
![MX-4LW (4)](http://www.ncmillingmachine.com/uploads/MX-4LW-41.jpg)
Perfect after-sales service
Mechanical Parts and Electrical Appliances
Guaranteed for 12 Months
Model | MX-8HG |
Work Table | 1524x 360mm |
Max. Longitudinal Travel | 1200mm |
Max. Vertical Travel | 500mm |
Max. Cross Travel | 500mm |
Guide rail form | ▲■■ |
Distance from spindle to table | 660mm |
Horsepower | 5HP |
Voltage | Three phase380V(or220V、415V、440V) |
Frequency | 50/60 |
Spindle Taper Type | NT40 |
Step Number (Low Range) (High Range) | 16steps 70、110、180、270、600、975、1540、2310rpm 140、220、360、540、1200、1950、3080、5440rpm |
Spindle Quill Travel | 120mm |
Quill Feed/Quill O.D. | 0.04、0.08、0.15/85.725mm |
T-Slot Slot No.×Width×Pitch | 3x 16x 65mm |
Ram Travel | 600mm |
Machine Dimensions | 2500x2600x3000 |
Weight | 3000kg |
Accessories
X, Y, Z three-axis grating ruler
X, Y direction mechanical tool feeder
QH160 precision flat pliers
58-piece set of M12 combined pressure plate
12-piece set of high-precision R8 collet set
Cooling system and water pan
A set of powerful integrated drill chuck
A set of environmentally friendly protective covers
Random wearing parts (gift)
Two pieces of milling head bolts
One piece of milling head brake pad
One piece of automatic knife spring
One V-belt
One synchronous belt
One rod
A set of anti-dandruff leather
Workbench locking handle four pieces
Special accessories
Rotary table
dividing head
Parallel blocks
